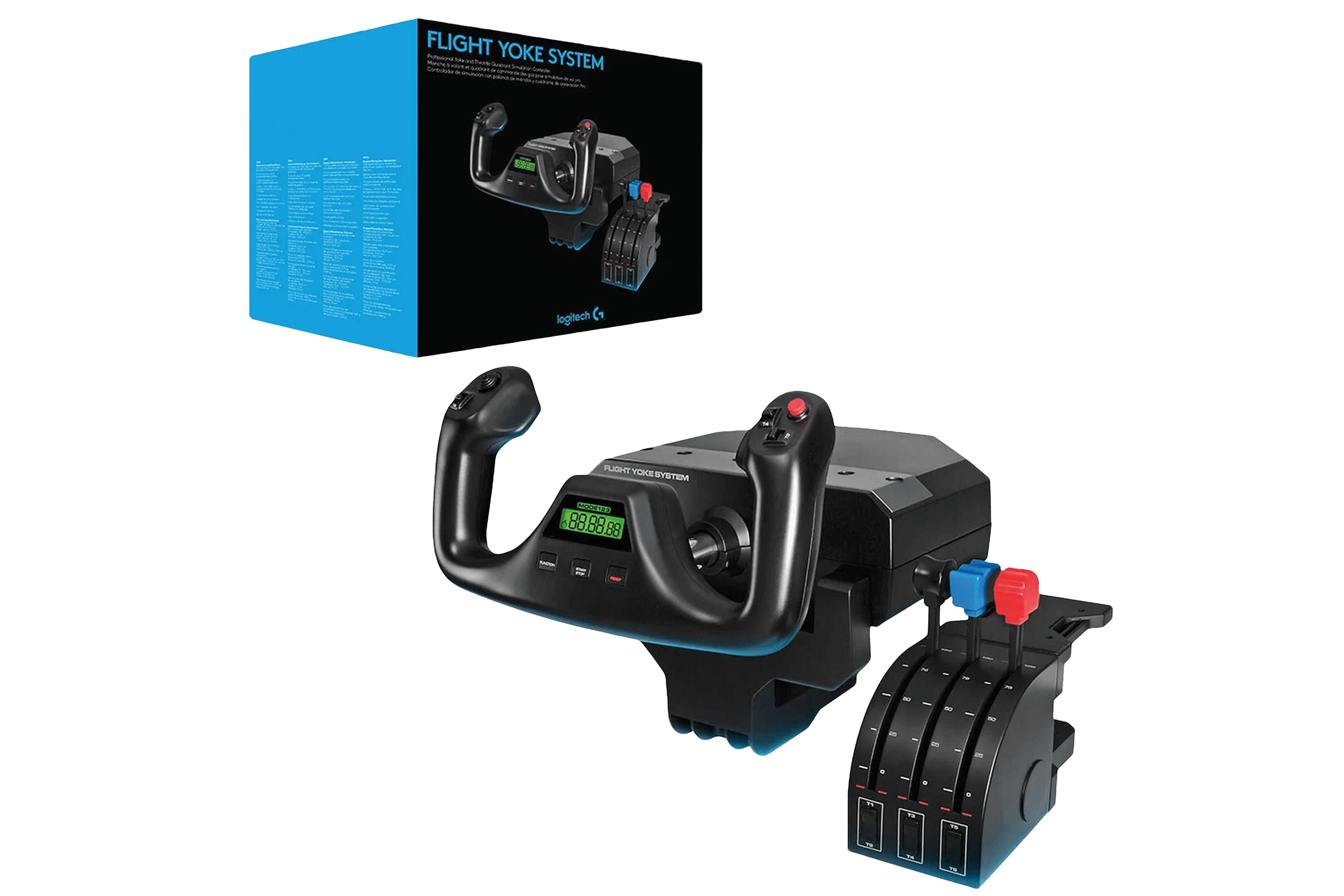

Logitech G Flight Yoke with Throttle Quadrant

GET IN THE PILOT’S SEAT WITH TRUE FLIGHT SIMULATION

Fly commercial and private planes as a beginner or advanced pilot with a true simulation yoke and quadrant in your hands. Develop the muscle memory and experience the feeling of precise, realistic control.

The Logitech G Flight Yoke System with included Throttle Quadrant features five total axes, stainless steel elevator and aileron control shaft, and 25 fully programmable buttons and switch positions. The yoke system is the hero of flight simulation and part of a complete, balanced setup—all available, modular and interchangeable from Logitech G.

2-Year Limited Hardware Warranty

Works for Microsoft Flight Simulator (2020) FSX & X-Plane Series

Compatible with Thrustmaster Rudder Pedals

FEATURES

READY FOR MICROSOFT FLIGHT SIMULATOR

Take to the skies and experience the joy of flight in the next generation of Microsoft Flight Simulator, at its best on Logitech G flight equipment. Travel the world in amazing detail with over 37 thousand airports, 2 million cities, 1.5 billion buildings, real mountains, roads, trees, rivers, animals, traffic, and more. Test your piloting skills against the challenges of night flying, real-time atmospheric simulation, and live weather in a dynamic and living world. Your panel works with Windows® 7, 8.1 and 10. A quick installation of a small plug-in from the support page adds compatibility with your favorite flight simulation software for PCs including Microsoft Flight Simulator, FSX - Flight Simulator X, X-Plane 10, and Prepar3D.

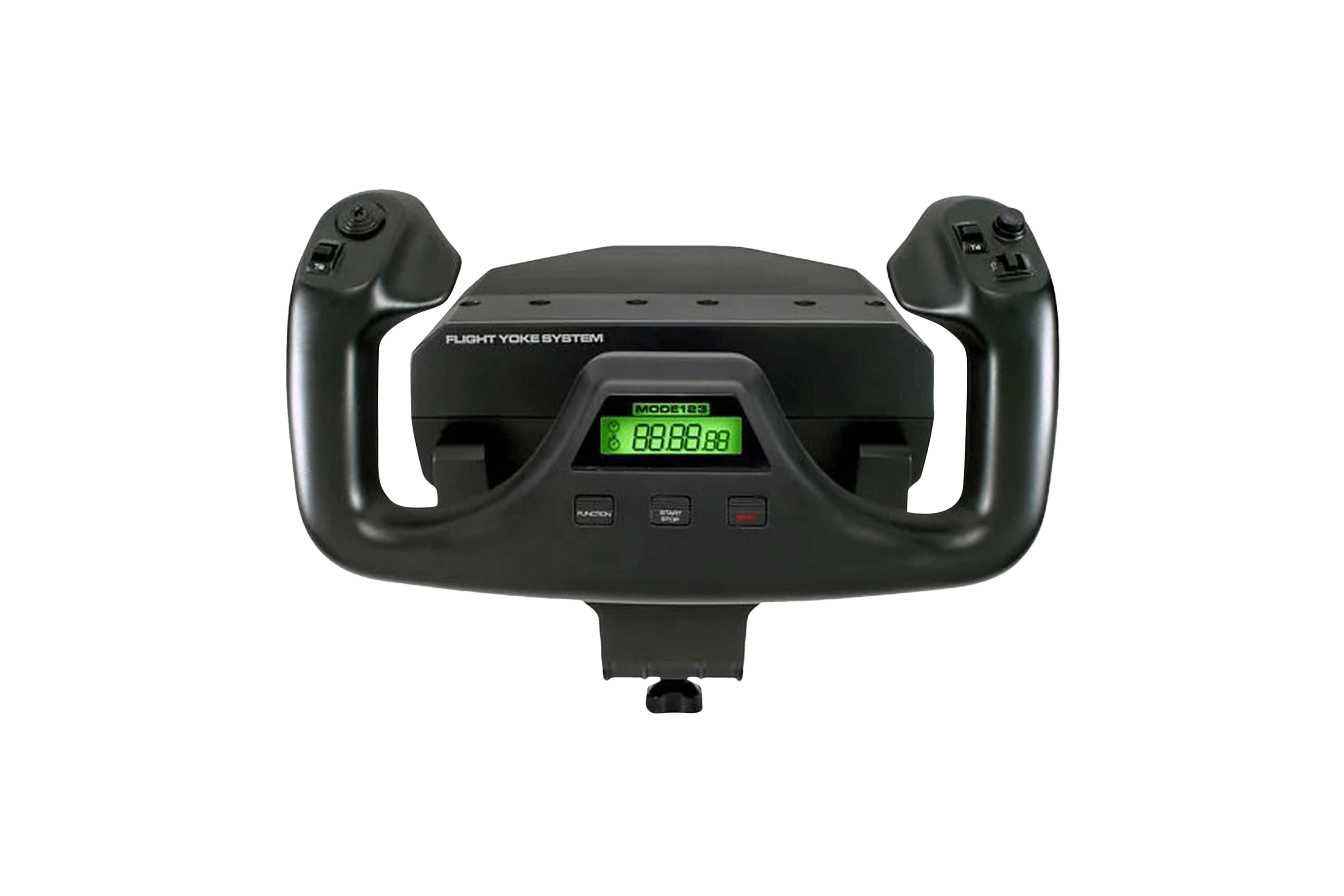

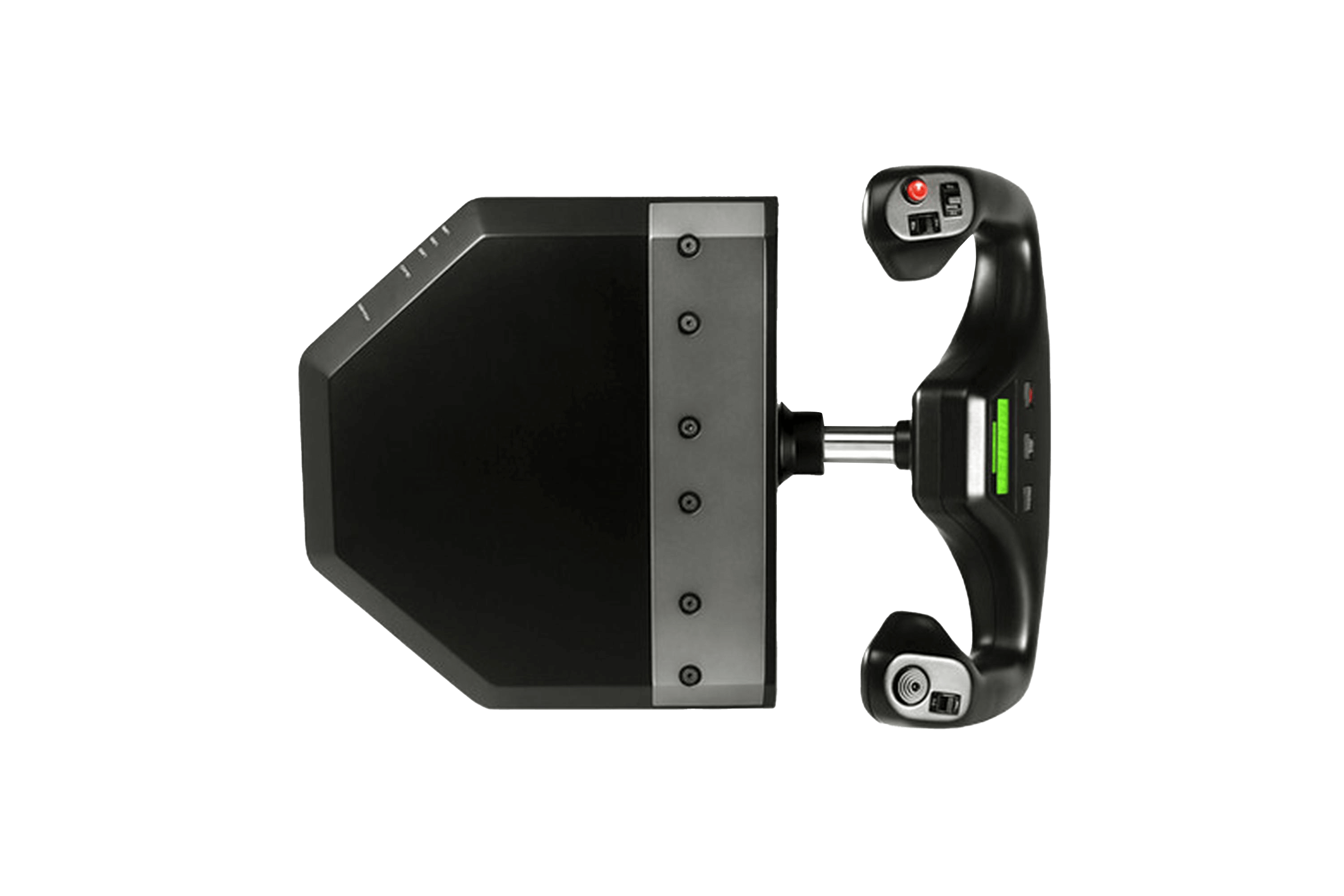

PRO-GRADE YOKE

Real Steel, Precision Bearings. Unlike some of the other offerings on the market, Logitech G Flight Yoke utilizes a durable stainless steel shaft with precision bearings for smooth, predictable elevator and aileron control. Whether navigating the front-to-back, side-to-side, or vertical axes, all controls are right at your fingertips. The built-in stopwatch is perfect for timing approaches, and if your PC lacks extra available USB ports, an integrated USB Hub provides a docking station for additional Logitech G Flight hardware.

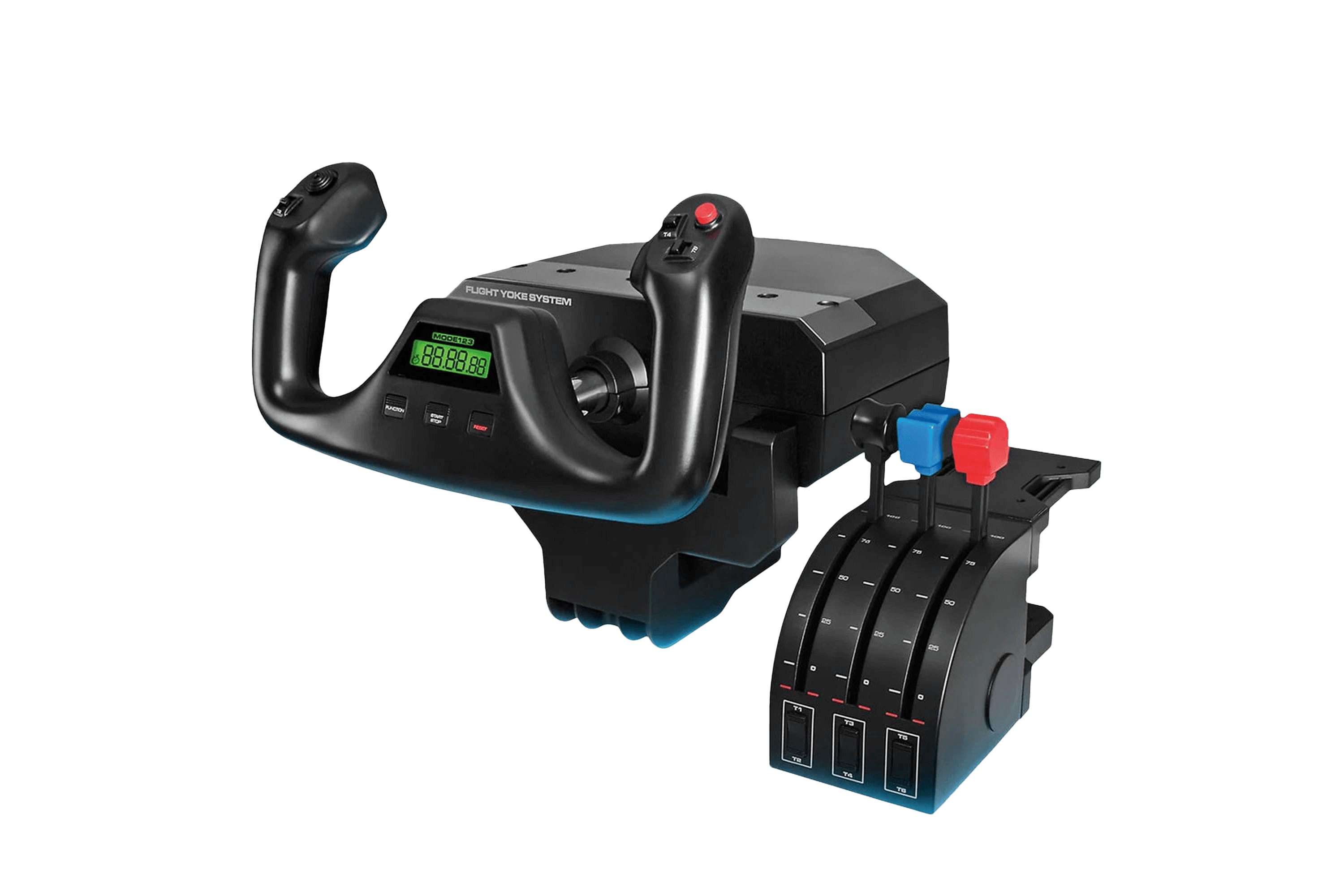

PRO-GRADE THROTTLE QUADRANT

Detachable, Configurable Knobs. Every Flight Yoke System includes a Flight Throttle Quadrant and for precise control over multi-engine aircraft, additional Throttle Quadrants are available separately. All levers are fully programmable and detachable, so you can configure any combination of throttle, flaps, mixture or propeller pitch. Just arrange lever knobs in the configuration that works best and assign commands from your favorite sim. The levers' detents-physical markings indicating where a certain action takes places—simplify control of your plane's idle and reverse thrusters.

75 PROGRAMMABLE OPTIONS

Customization Software is Part of the Package. While the Yoke and Quadrant have 25 buttons and switch positions, you may want to fine-tune and customize your controls. For programming capability, download the drivers and software to start customizing. The Yoke features a three-position switch, so you can cycle through three complete profiles, with ease and speed, for a total number of 75 user-definable controls.

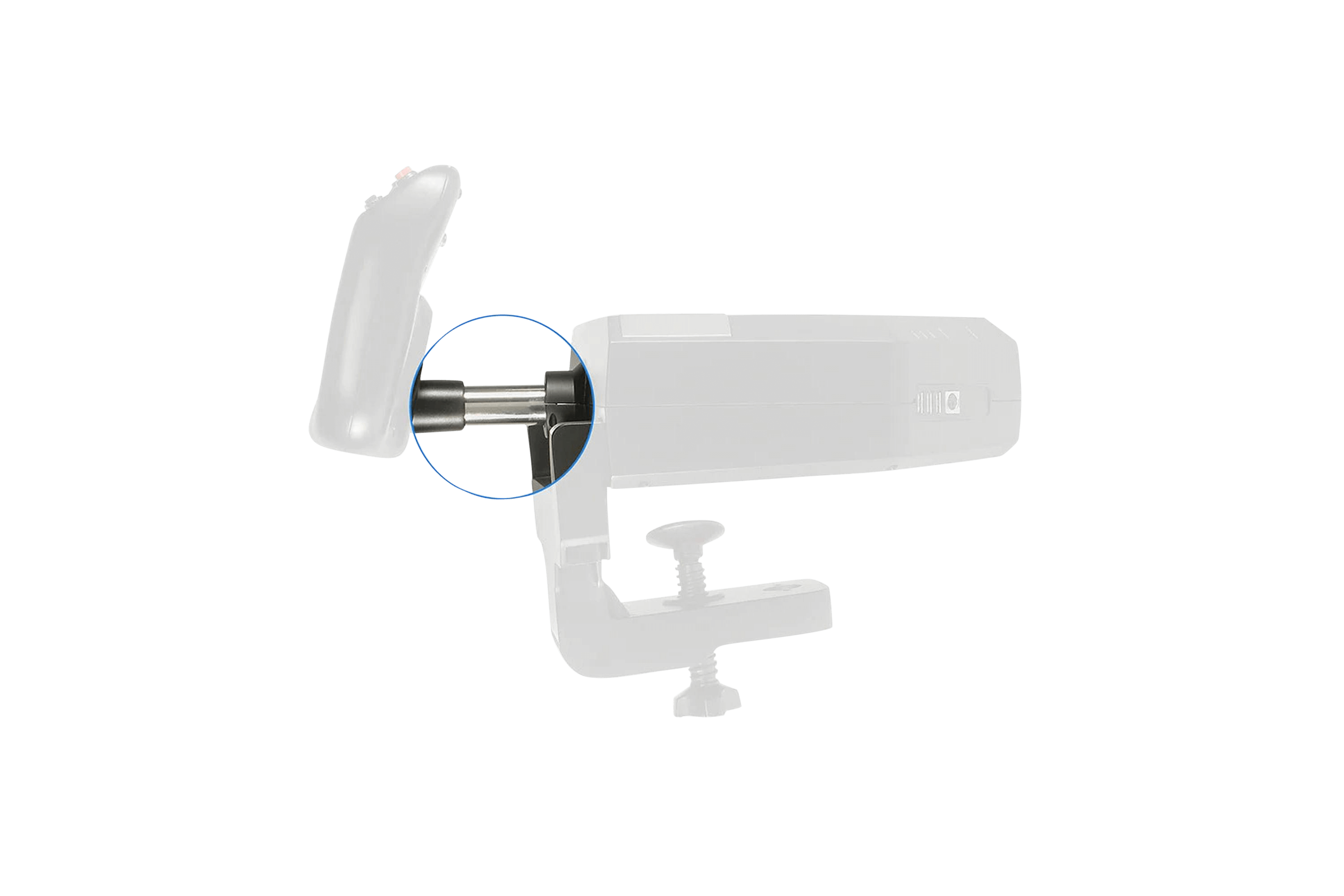

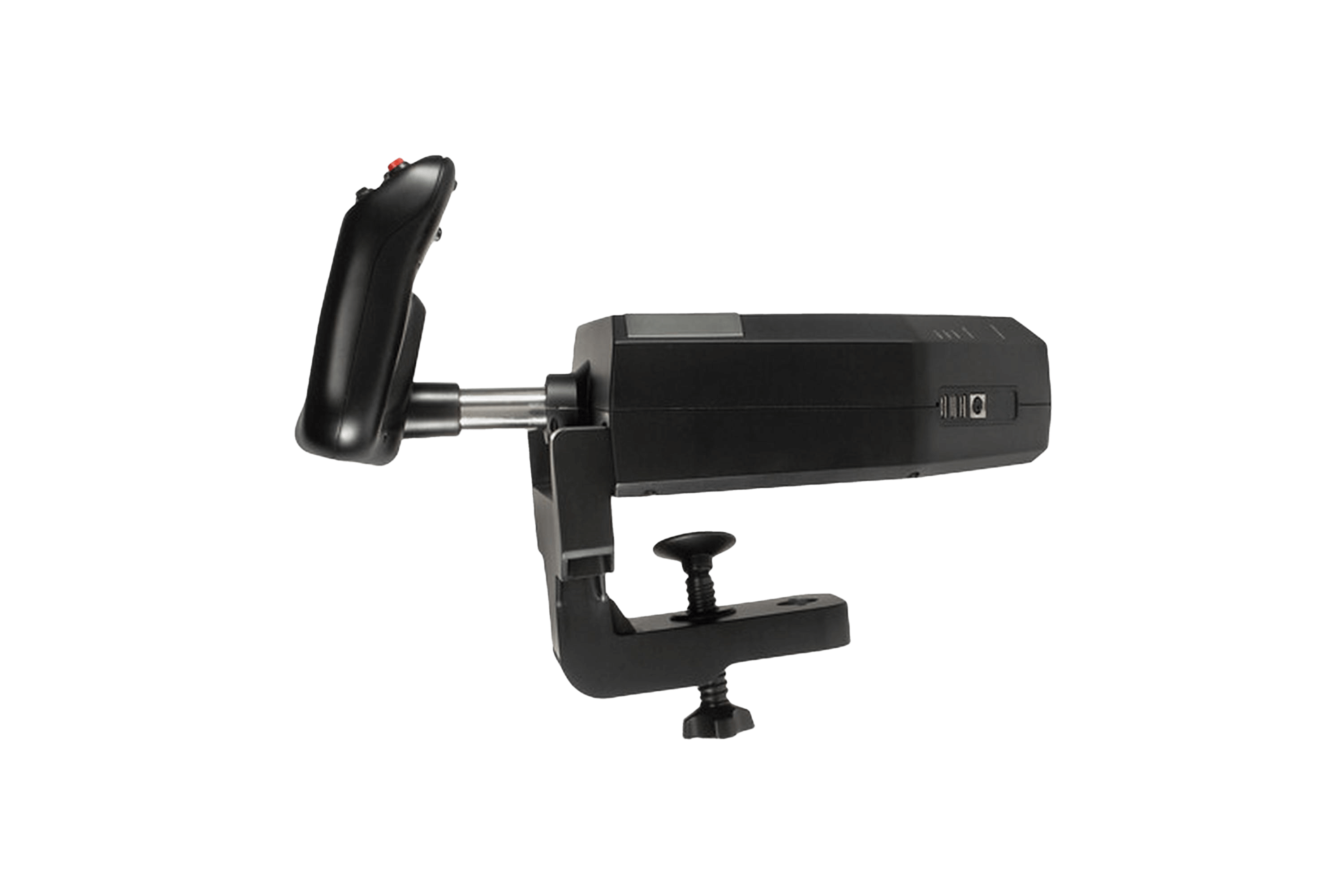

SECURE WITH ADJUSTABLE MOUNTS

Rugged Fastening Hardware Included. Logitech G Flight Yoke and Throttle Quadrant are both equipped with adaptable mounting clamps which provide the freedom to configure your kit in any manner you see fit. Whether on top of your desk or clamped to the front, you can securely place the controls exactly where you want them.

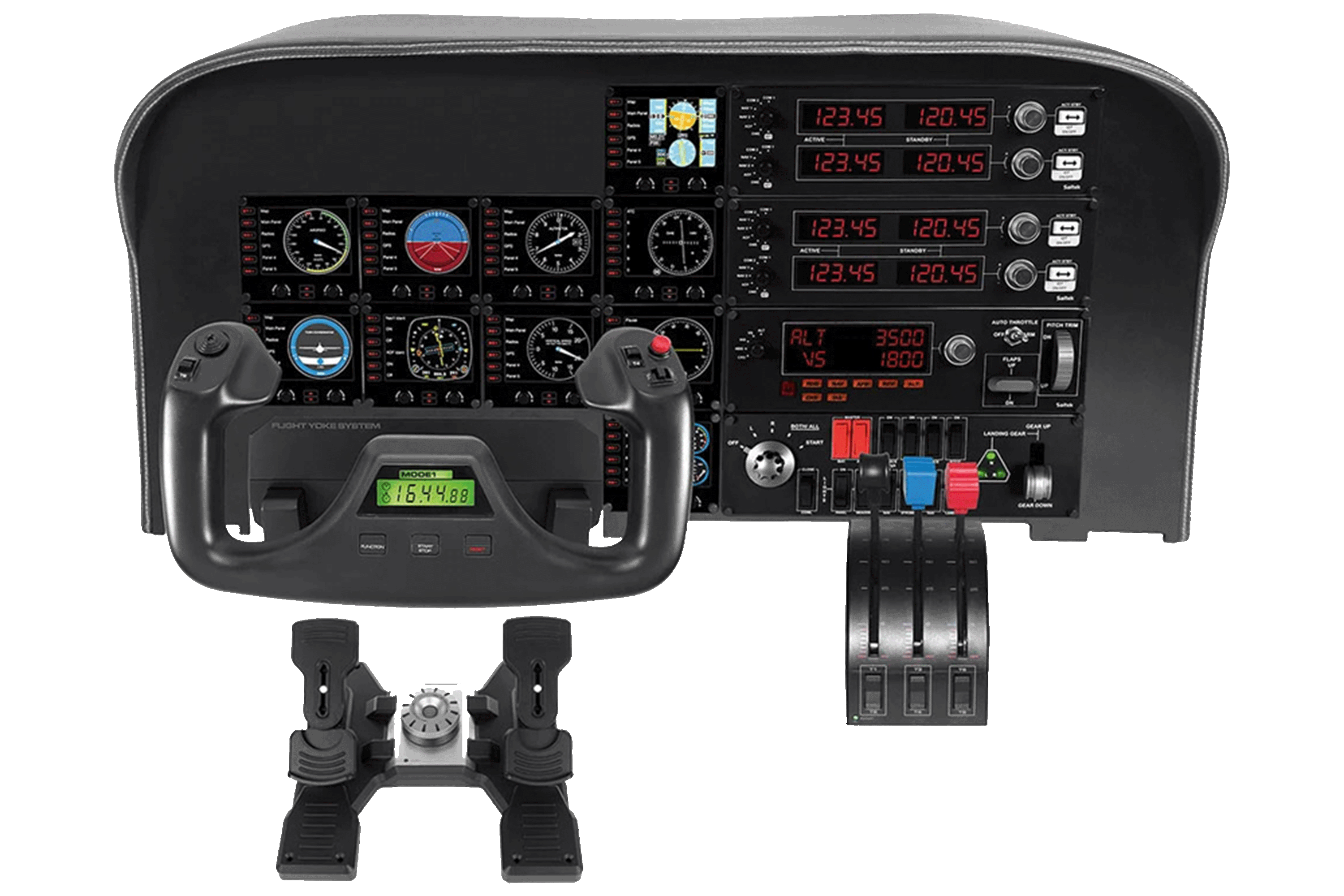

BUILD A MODULAR COCKPIT

Part of a Complete System. For countless interchangeable configurations, Logitech G Flight Yoke System is built to integrate with the complete line of flight simulation products. All simulation panels can be situated one on top of another or side-by-side. Altimeter above the Compass, Vertical Speed Indicator to the left of your Airborne Direction Finder Â… the choice is yours. Easy-to-use mounting brackets give you control of your flight simulation setup, including sturdy table mount brackets for a secure yoke and quadrant.

SYSTEM REQUIREMENTS

Smart Technology

Windows® 10, Windows 8.1, Windows 7

1-USB 2.0 Port

Internet connection for optional software download

IN THE BOX

Flight Yoke with 1.8m USB Connector Cable

Flight Throttle Quadrant with 1.5m PS/2 Connector Cable

2 Desk Clamps

PHYSICAL SPECIFICATIONS

Flight Yoke:

Length: 38 – 46.4 cm

Width: 31 cm

Height: 18.5 cm

Weight (w/o clamps): 1775 g

Weight: 2094 g

Cable Length (Power/Charging): 1.8 m

Yoke Clamp:

Length: 16.7 cm

Width: 15.5 cm

Height: 24.7 cm

Flight Throttle Quadrant:

Length: 11 – 17.5 cm

Width: 16.5 – 17.5 cm

Height: 9 cm

Weight (w/o clamps): 501 g

Weight: 694 g

Cable Length (Power/Charging): 1.5 m

Throttle Quadrant Clamp:

Length: 10.8 cm

Width: 11 cm

Height: 9 cm

CONTROLLER SPECIFICATIONS

Connection Type: USB

USB Protocol: USB 2.0

USB Speed: Full Speed

Indicator LIghts (LED): Yes

LCD Display: Yes

USB Ports (Built-in): Yes

Backlighting: No

WARRANTY INFORMATION

2-Year Limited Hardware Warranty
