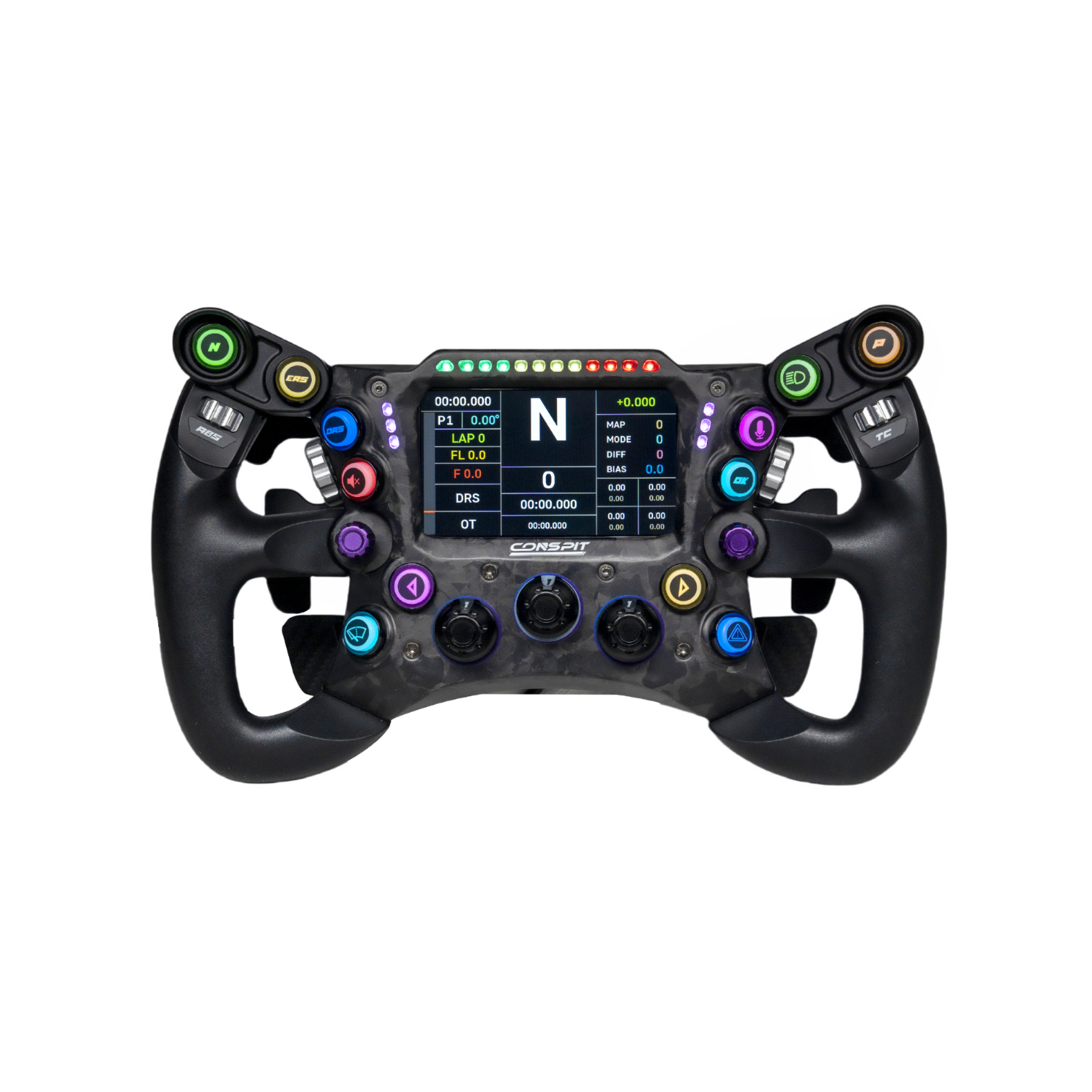

290GP Formula wheel

290 GP is the true next-generation simulation racing wheel that realizes the CONSPIT "N+1" product concept. It breaks the planar constraints of similar products through a unique 3D ergonomic design and redefines the shape of Formula steering wheels with multiple structural innovations, aiming to further expand the boundaries of high-quality simulation driving experiences.

The 290 GP is constructed with a molded carbon fiber front panel and a high-strength die-cast aluminum alloy body. It features a 4.3'' custom LCD screen, modular RGB ergonomic buttons, dual-clutch paddles, a rocker-type paddle shifter combination, four thumb wheels, three 12-position rotary switches, and two seven-way joysticks.

Select Your Quick Release
The Conspit 290 GP includes the Quick Con 50/70mm Quick Release Adapter for easy attachment to the wheel base quick release of your choice. Note: Wheel Side Quick Release* required specific to your wheel base. *Sold Separately.

Customise Your Wheel
Full-color customization, supporting lighting effects feedback control via CONSPIT Link 2.0.

Note: SimHub not currently supported on the 290 GP.

Connect To Any Wheelbase:
All Conspit wheels include a 50:70 Wired Quick Release Adapter with an aviation-grade USB wired connection, providing compatibility with all major 3rd Party 70mm Quick Release systems.

Features:

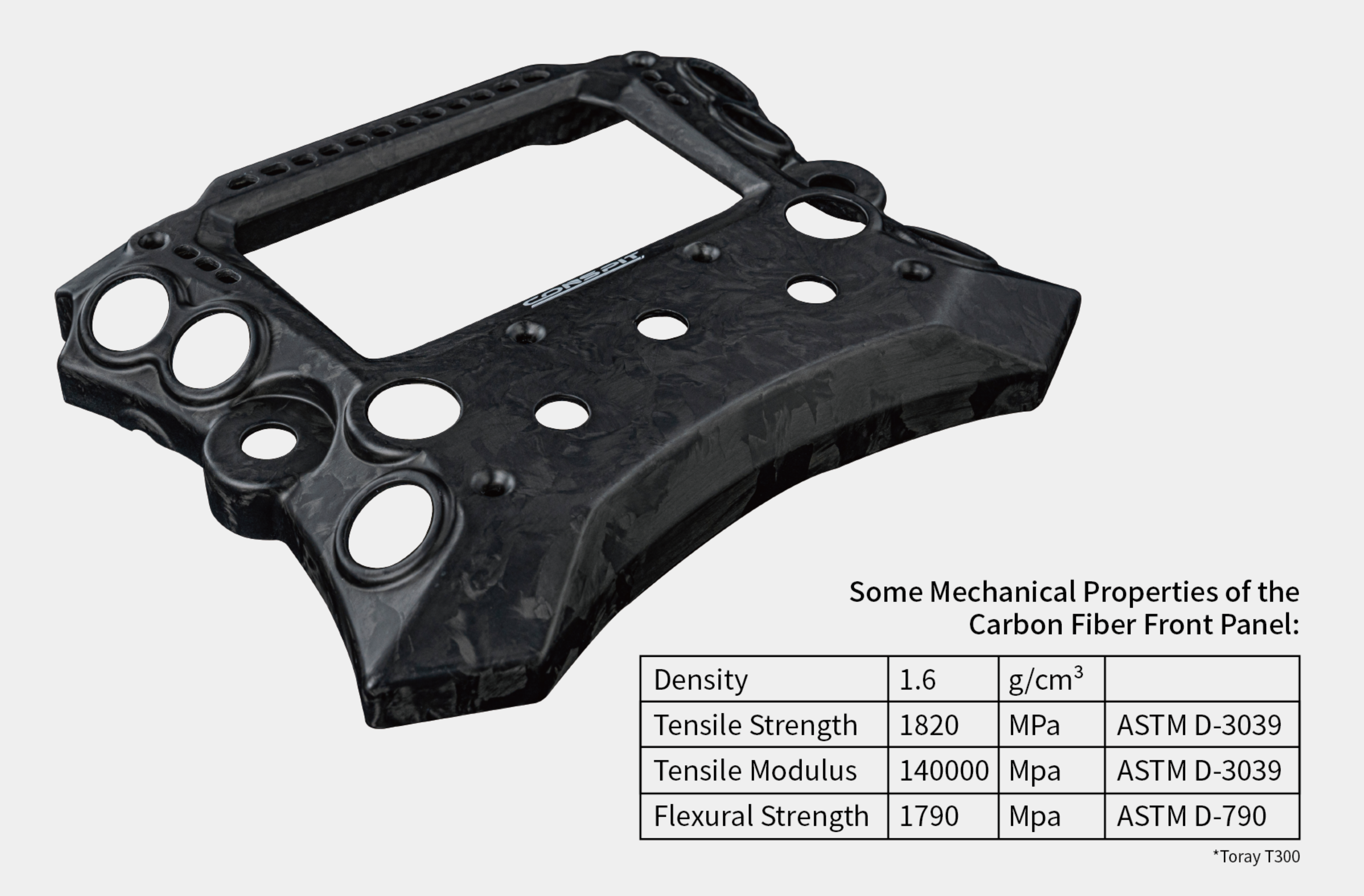

Light but Rigid: The molded carbon fiber front panel combined with an aluminum alloy rear cover achieves a light weight of 1350g, while providing unprecedented rigidity in the overall structure, ensuring a solid experience when combined with a high-torque steering wheel direct drive base.

Redefining 3D Aesthetics: Not limited to a flat perspective, it fully combines CONSPIT’s aesthetic design with structural optimization in three dimensions, looking for the best visual fulcrum.

Innovative Ergonomic Design: To help drivers maintain a leading position in the competition, the 290GP’s attention to ergonomic details will exceed your expectations.

Controls Distribution Inspired by HOTAS: Inspired by HOTAS (Hands On Throttle-And-Stick) interaction logic in aviation, it maximizes the use of thumb-accessible control areas through a three-dimensional component stacking design.

Innovative Design of CONSPIT Space Buttons: The height and orientation of all buttons are determined by the natural position of the thumb when holding the Steering wheel, forming a specialized design in space. The 3D stacking brings greater operational density, making each operation more intuitive and effortless compared to ordinary flat designs.

Enduro Grips: The 290GP Enduro grips are specifically designed for long-distance endurance riding, offering exceptional durability and an ergonomic design that alleviates grip fatigue.

Durable Material: Using a specially modified TPU material precision molded in a double-layer injection molding process, the wear resistance and anti-aging properties far exceed the TPE material commonly used in most Steering Wheels on the market.

Durability Engineering: The 290GP grips are ergonomically designed based on the angles, diameters and force characteristics of modern Formula and some GT race cars and are compatible with two and three finger lower grip styles.

Ergonomic RGB ErgoTouch buttons: Each button is assembled in a modular fashion, ensuring local rigidity and consistent tactile feedback, providing a crisp and direct response when pressed.

Thumb-Tick Thumbwheel Structure (Patent): Based on the force characteristics of the thumb in the upward position when holding the Steering wheel, CONSPIT has an internally developed “Thump-Tick” tactile feedback structure in this area, optimized to improve interaction efficiency.

Magnetic “MagFlip” (Patent) Rocker Arm Shift Camset: Derived from real Formula racing Steering Wheels , it allows drivers to use both “push” and “pull” methods for quick gear changes, with a robust magnetic cam structure that provides powerful tactile feedback.

Ready to Use Instrument Panel: Fully integrated with a high-resolution 4.3? display, 800×480 resolution, 500nit brightness and 60fps refresh rate. Equipped with various instrument pages designed for sim-racing needs, it displays commonly used telemetry data at a glance.

Connection: USB A soft silicone curly cord for direct connection to PC. Alternatively fit the optional CDP Quick Release for a wireless connection to ARES wheel bases.

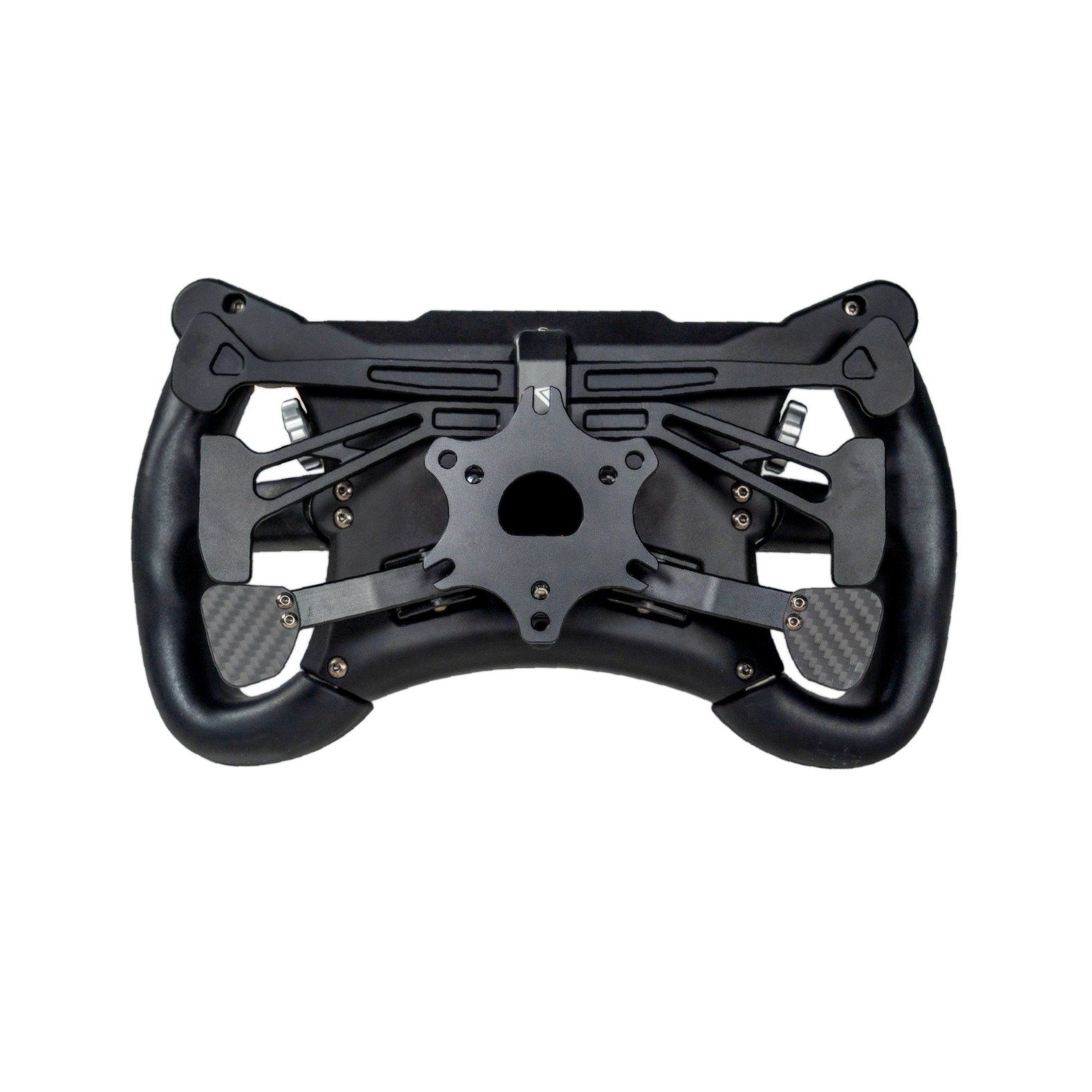

Mounting: Fitted with a standard 70pcd mounting Flange to enable fitment to any standard wheel mount. Purchase a CDP Quick Release for fitment to an ARES Base for a Wireless Direct connection.

Specifications:
Screen: 4.3 800*480 and adjustable brightness
Indicator: 18 x RGB LEDs
Dimensions: 290mm x 175mm x 100mm / 11.4 x 6.9 x 3.9
Weight: 1400g/3.1lb (without quick release/flange)
Grip diameter: 290mm/11.4
Front shell material: carbon fiber
Main material: aluminum alloy
Buttons: 12 x ErgoTouch modular RGB buttons
Paddle shifters: MagFlip seesaw paddle set
Other controls: 4 thumb wheels and 3 rotary switches
Clutch paddles: Dual clutch paddles
Fixing: 3x50mm M5
Platform: Windows PC
Connection: Direction connection via USB and CONSPIT CAN communication
Cable: USB cable
Software: Conspit Link 2.0

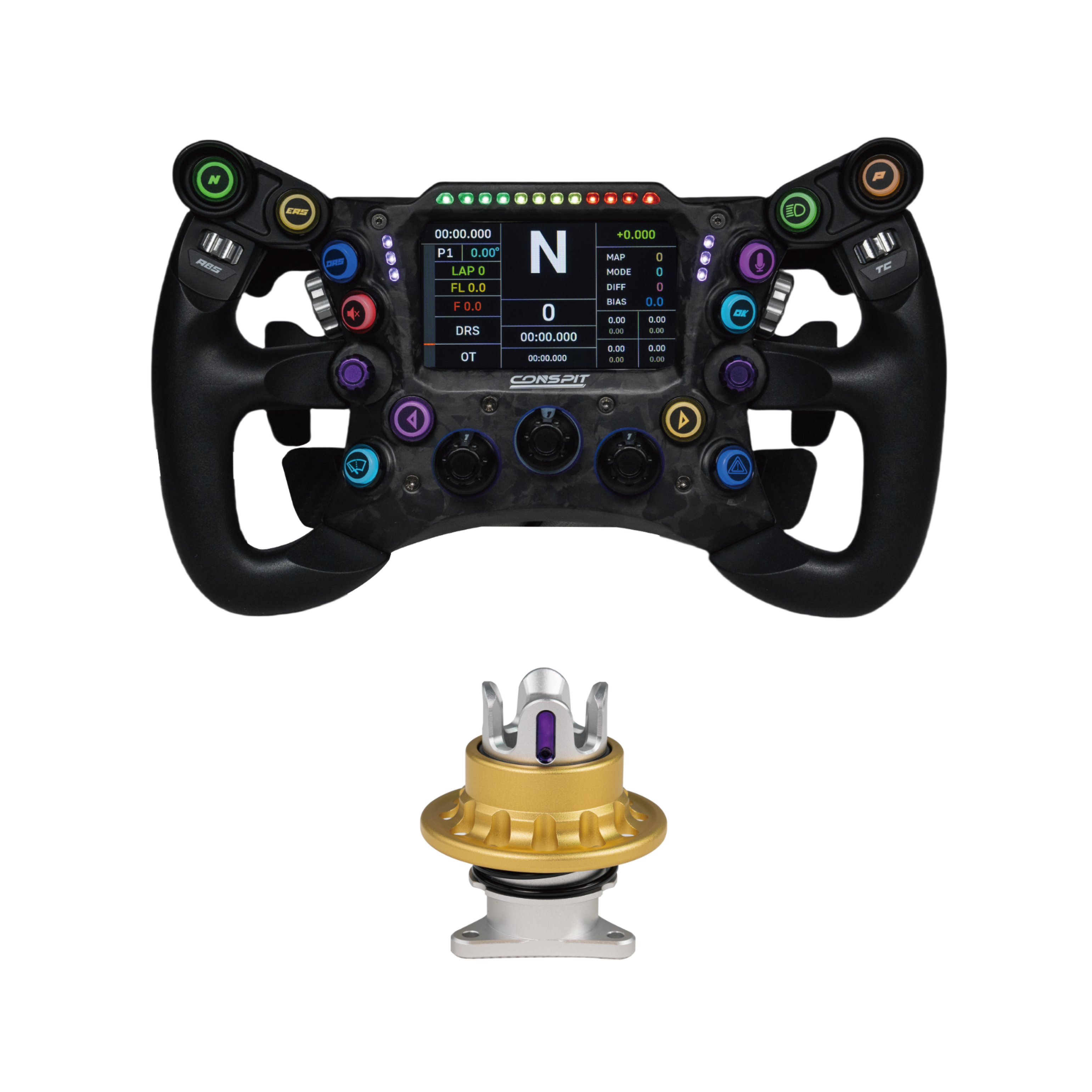

Optional CDP Quick Release for Wireless Connection to ARES Wheelbases:

Unlike common ball-type single locking structures on the market, the CDP Quick Release adopts a pin + ball design inspired by the real Formula Steering Wheels, ensuring zero slack even after prolonged use.
Electrical connection between your steering wheel and a wheel base can be achieved through spring contacts inside the quick release, ensuring stability, reliability, and plug-and-play convenience.
