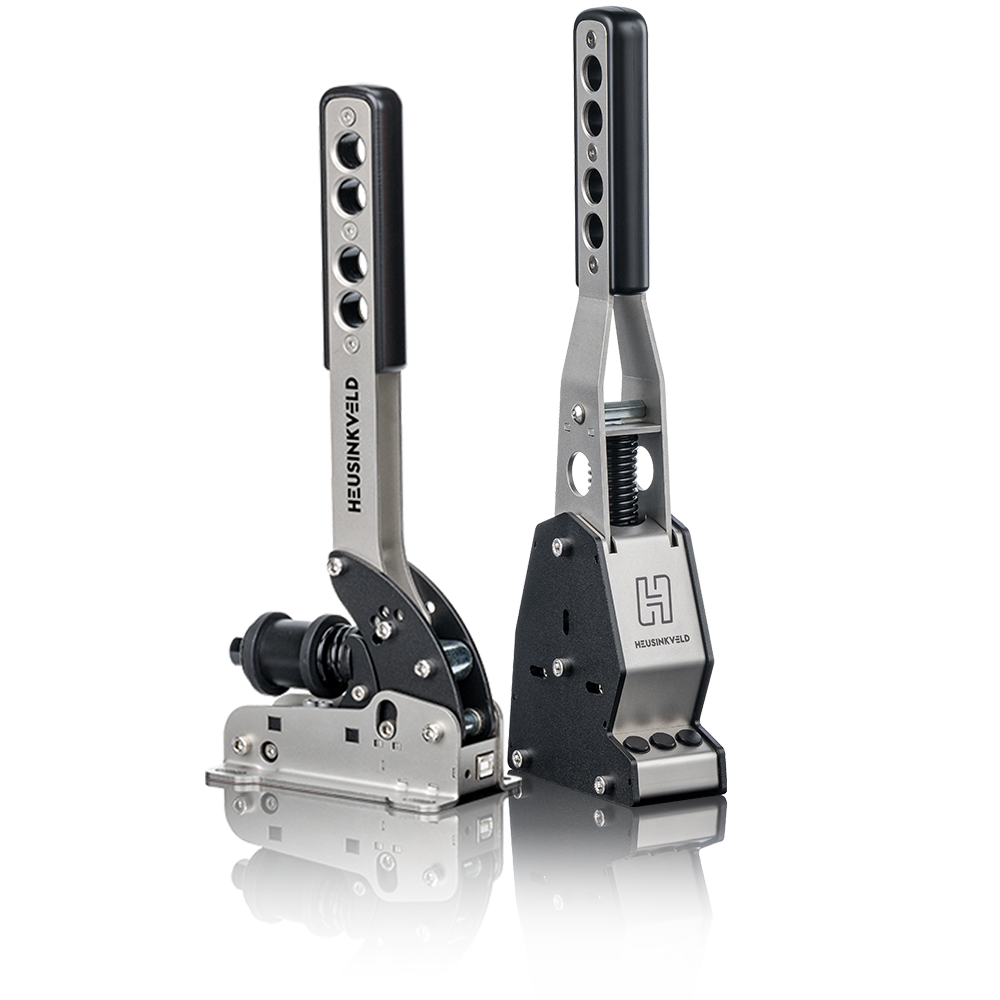

Bundle - Heusinkveld Handbrake and Heusinkveld MagShift
Elevate your sim racing cockpit with the Heusinkveld MagShift and Heusinkveld Handbrake bundle — a professional-grade pairing built for uncompromising realism, precision, and durability. Designed for competitive sim racing, driver training, esports, and high-end home setups, this bundle offers authentic mechanical feedback and deep adjustability across rally, drift, GT, touring and historic racing disciplines.
Key Features

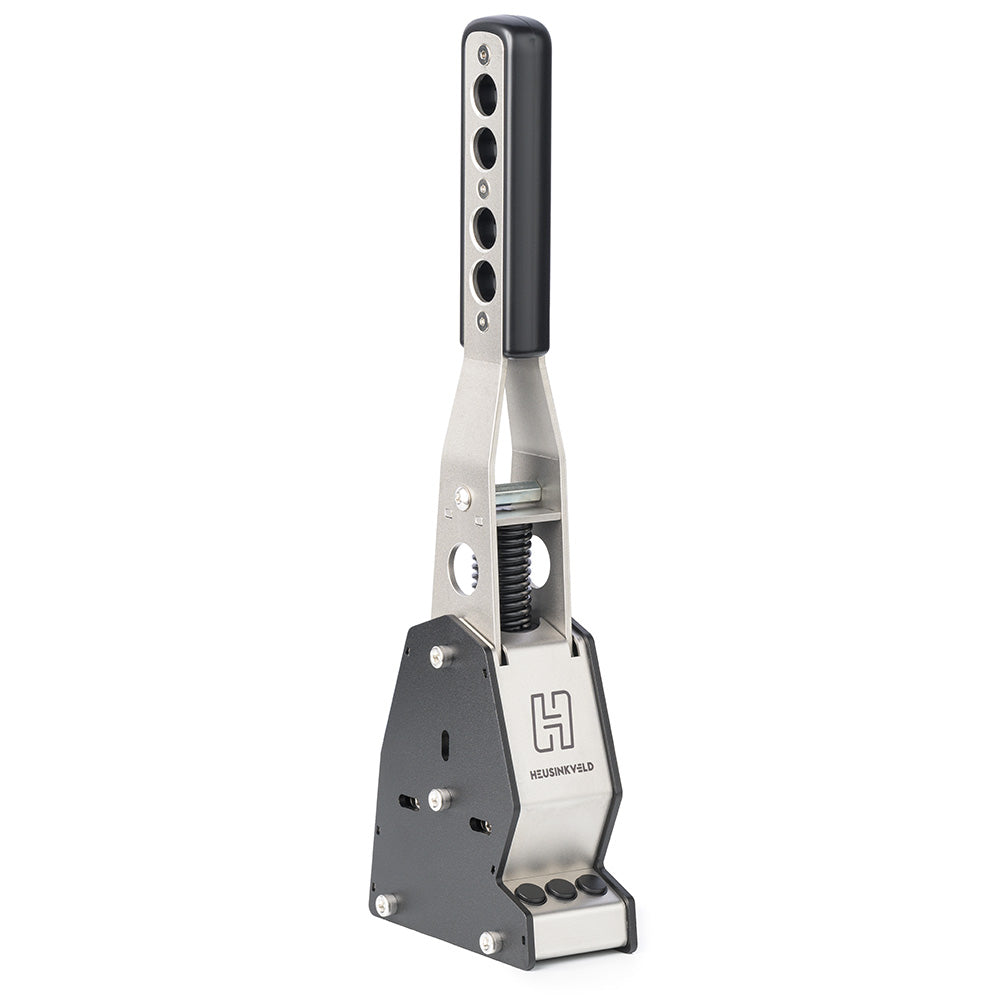

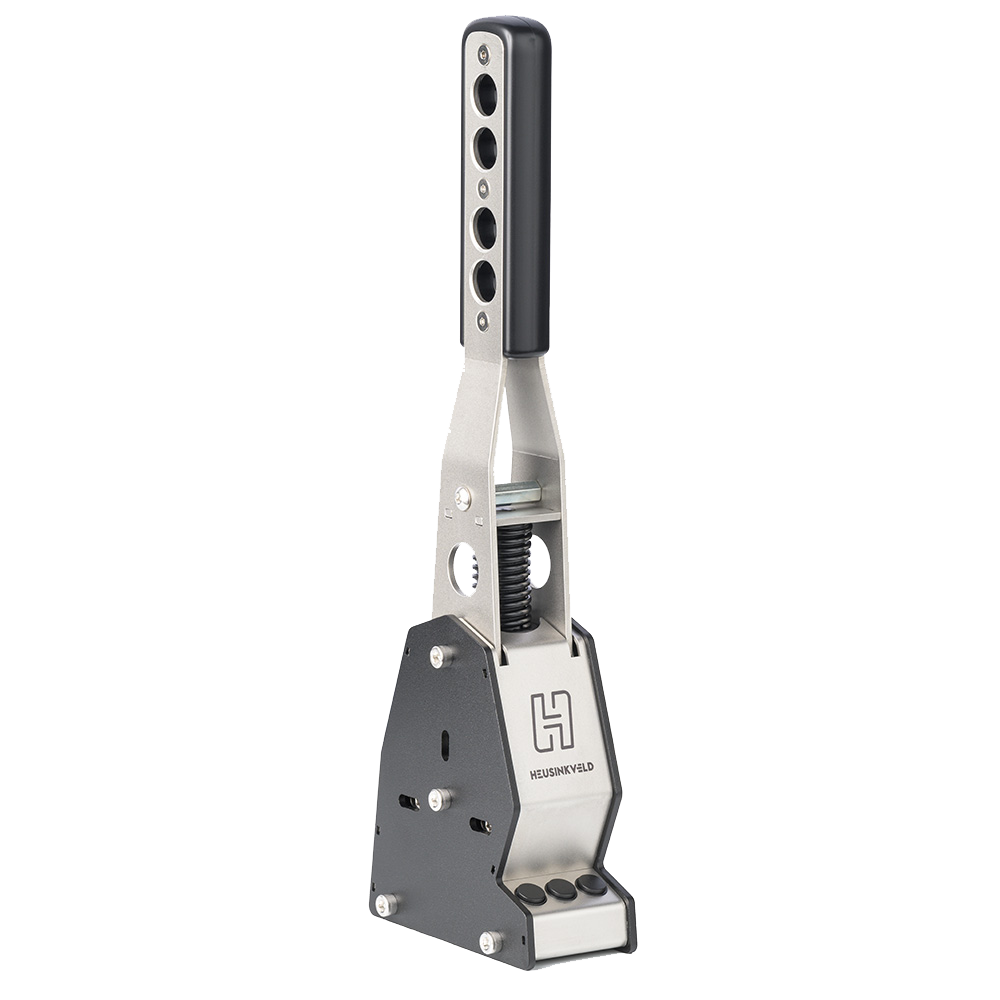

MagShift Sequential Shifter Features
-
Advanced magnetic resistance system replicates the solid, mechanical feel of real motorsport sequential gearboxes.
-

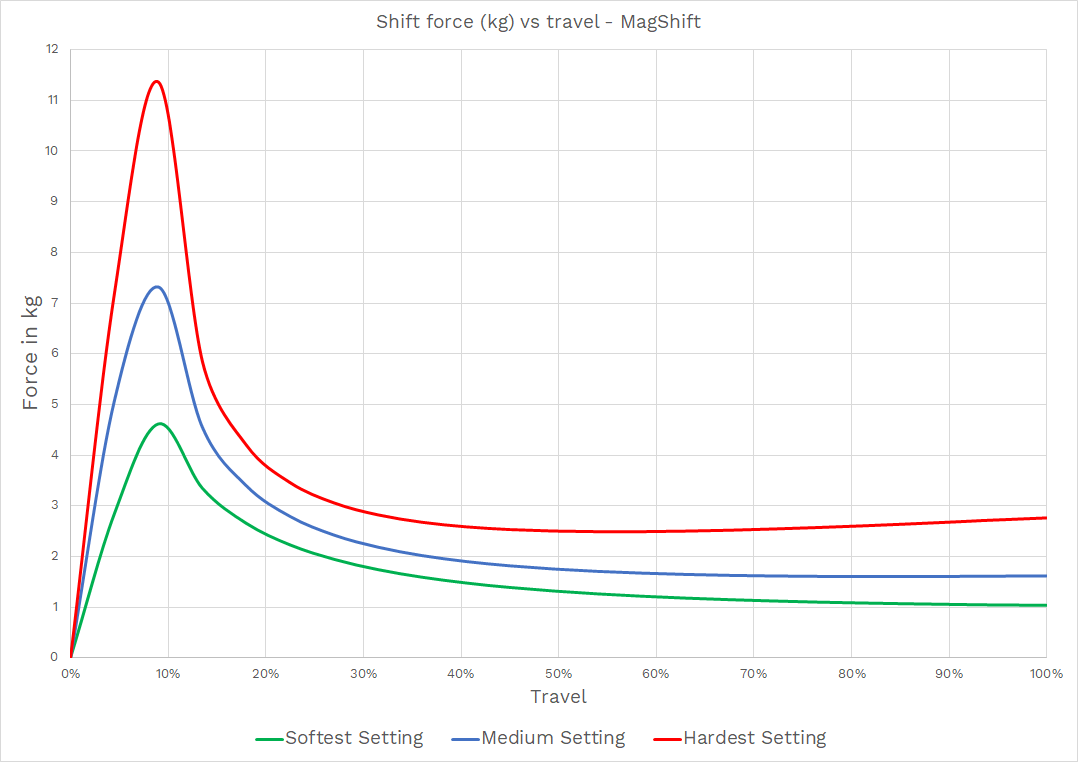

Independently adjustable upshift and downshift forces, with a total lever resistance range of approximately 4.5 kg to 11 kg.
-
Opto-electronic, wear-free sensors provide precise gear change detection and long-term reliability.
-

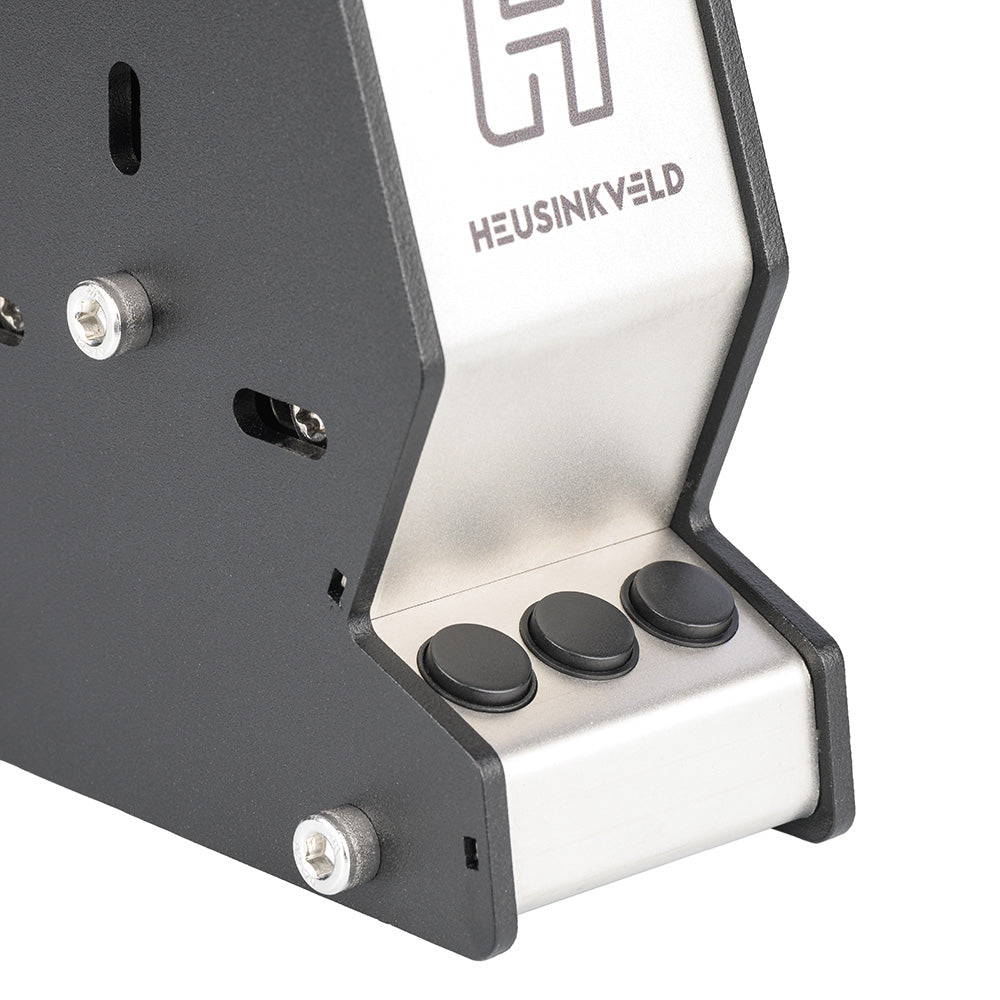

Integrated mini button box with three programmable inputs and support for up to ten total assignable outputs via software.
-
Robust stainless-steel construction with powder-coated finish for professional durability.
-
Comes with a U-shaped mounting bracket and adjustment tools for easy installation on most aluminium-profile rigs and cockpits.
-

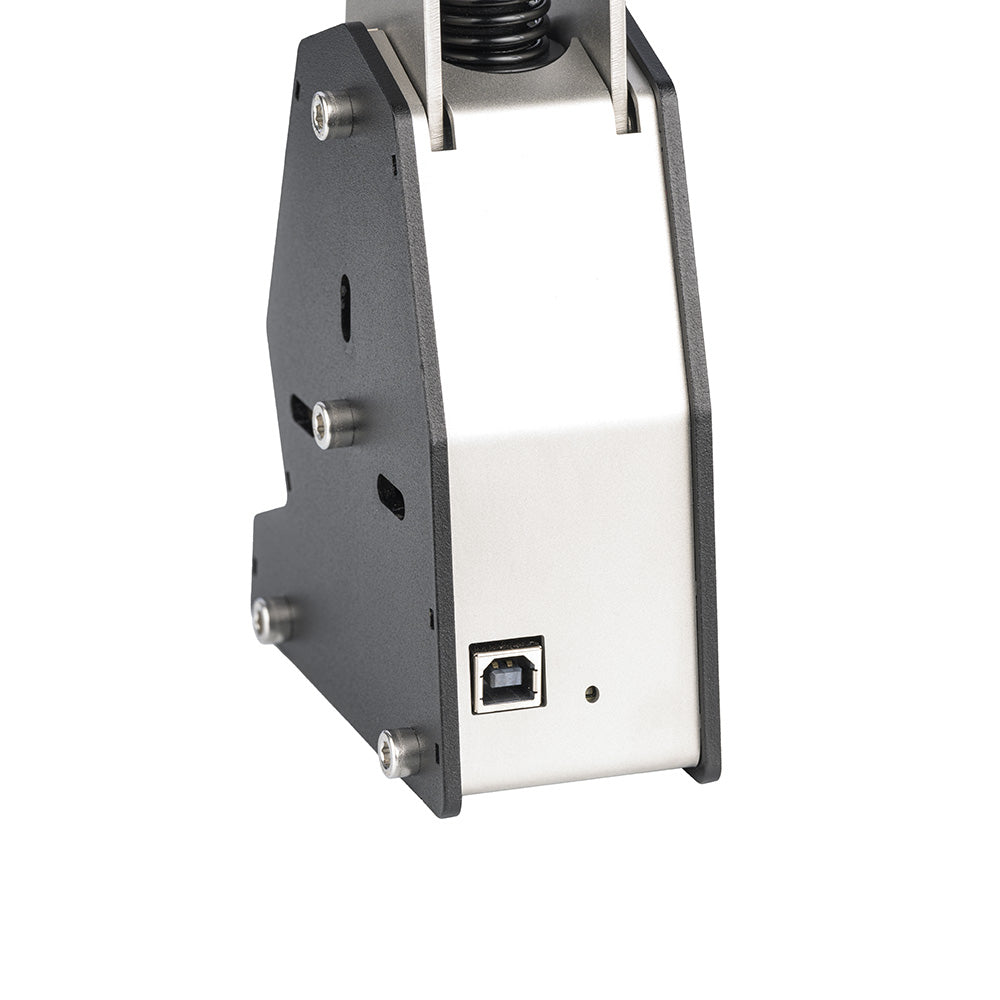

USB plug-and-play PC compatibility.
-
SmartControl and SmartControl Live support for fine-tuning output curves, deadzones, and multiple on-the-fly profiles.
Handbrake (Load-Cell) Features
-
Heavy-duty 120 kg load cell delivering up to 22 kg of force at the lever for realistic handbrake performance.
-
Ideal for rally handbrake turns, drifting initiation, precise braking control, and advanced car rotation techniques.
-
Two-stage spring and elastomer system to simulate pad-to-disc slack and progressive braking feedback.
-
Includes soft, medium, and stiff elastomer options for tailoring handbrake feel.
-
Highly adjustable lever mechanism:
-
Vertical or horizontal orientation
-
Lever angle adjustment
-
Optional adapter plate enabling up to ~22.5° of yaw adjustment
-
-
Stainless-steel, powder-coated frame built for long-term endurance and heavy use.
-
USB connectivity with full SmartControl software tuning for curves, deadzones, sensitivity, and multiple profiles.
Specifications
MagShift Sequential Shifter
| Specification | Value |
|---|---|
| Shift Force Range | Approx. 4.5 kg to 11 kg |
| Sensor Type | Opto-electronic, wear-free |
| Dimensions (Base) | 370 × 130 × 72 mm |
| Installed Lever Height | 362 mm (lowest) / 377 mm (highest) |
| Outputs | 3 assignable buttons + up to 10 programmable outputs |
| Construction Material | Stainless steel, powder-coated |
| Weight | Approx. 2.42 kg |
| Mounting | U-shaped bracket included |
| Connectivity | USB (PC) |
| Tuning Software | SmartControl & SmartControl Live |
Heusinkveld Handbrake (Load-Cell)
| Specification | Value |
|---|---|
| Load Cell Rating | 120 kg |
| Max Lever Force | Approx. 22 kg |
| Dimensions (Base) | 317 × 162 × 84 mm |
| Lever Orientation | Vertical or horizontal |
| Lever Angle Adjustment | Multiple positions, up to ~26° |
| Yaw Adjustment | Up to ~22.5° (with adapter plate) |
| Resistance Tuning | Two-stage spring system + soft/medium/stiff elastomers |
| Construction Material | Stainless steel, powder-coated |
| Weight | Approx. 2.17 kg |
| Connectivity | USB (PC) |
| Software | SmartControl & SmartControl Live |
Why This Bundle Stands Out
With its combination of a high-precision magnetic sequential shifter and a professional-grade load-cell handbrake, this bundle offers one of the most immersive control experiences available in sim racing hardware. Drivers can replicate realistic shifting forces, nuanced handbrake modulation, and professional cockpit ergonomics while benefiting from advanced tuning options and exceptional build quality.
Perfect for rally simulators, drifting platforms, GT endurance racing, touring-car championships, and competitive sim racing environments, the Heusinkveld MagShift + Handbrake Pro Bundle is a top-tier choice for anyone building the ultimate racing cockpit.
- Rated 5 out of 5 stars10 months agoSignificant upgrade
Ok I'll admit I'm cheating a bit - I used these on my Simjack UT pedals. The elastomers that came with the pedal set were too firm for my taste. I installed the three 3 soft elastomers from this kit along with the stock simjack spring, and I am finally happy with the brake pedal feel. I did drill out the centers as the Simjack rod diameter is larger, and drilling them was tricky because they just stretch around the drill bit. If you don't enlarge the hole, they will bind on the rod even with a gracious amount of lubricant. Trak Racer was great to work with because they had these in stock and shipped from the US.
CAChris A.Verified Buyer - Rated 5 out of 5 stars1 year agoExcellent, easy to fit handbrake
Absolutely fantastic handbrake and support. Mine had an almost immediate squeak/creak due to an errant part (a bad coating layer on an inner nut); dry lithium was a temporary fix whilst waiting for a replacement part sent by support at Heusinkveld (which I also lithium greased for good measure). With the new part, it's smooth as!
The best part about the handbrake aside from the excellent feel and motion must be how easy the mounting mechanism was to fit to my already jam packed TR160 - a combination computer science station, flight and driving Sim rig. A perfect match for my Sprints, I also fitted it with a "boot" to protect against dust ingress.
Much appreciate TR stocking these in Australia now, to avoid having to deal with customs and long wait time - excellent shipping experience, thanks!
JSJorgen S.Verified Buyer - Rated 5 out of 5 stars2 years agoGreat product
Amazing product and really fast delivery could not be happier
PBPaul B.Verified Buyer - Rated 5 out of 5 stars11 hours agoTop notch
Plug and play
LFLuiz F. B.Verified Buyer - Rated 5 out of 5 stars7 months agoi like em :)
i really like em aim verry consist when im driving
JLjohnny l.Verified Buyer
