TR-One Universal Direct Fit Wheel Mount - requires TR80-NWMA

SKU: TR80-NWMDD
Sale price$49.00
4.9

Tax included. Shipping calculated at checkout

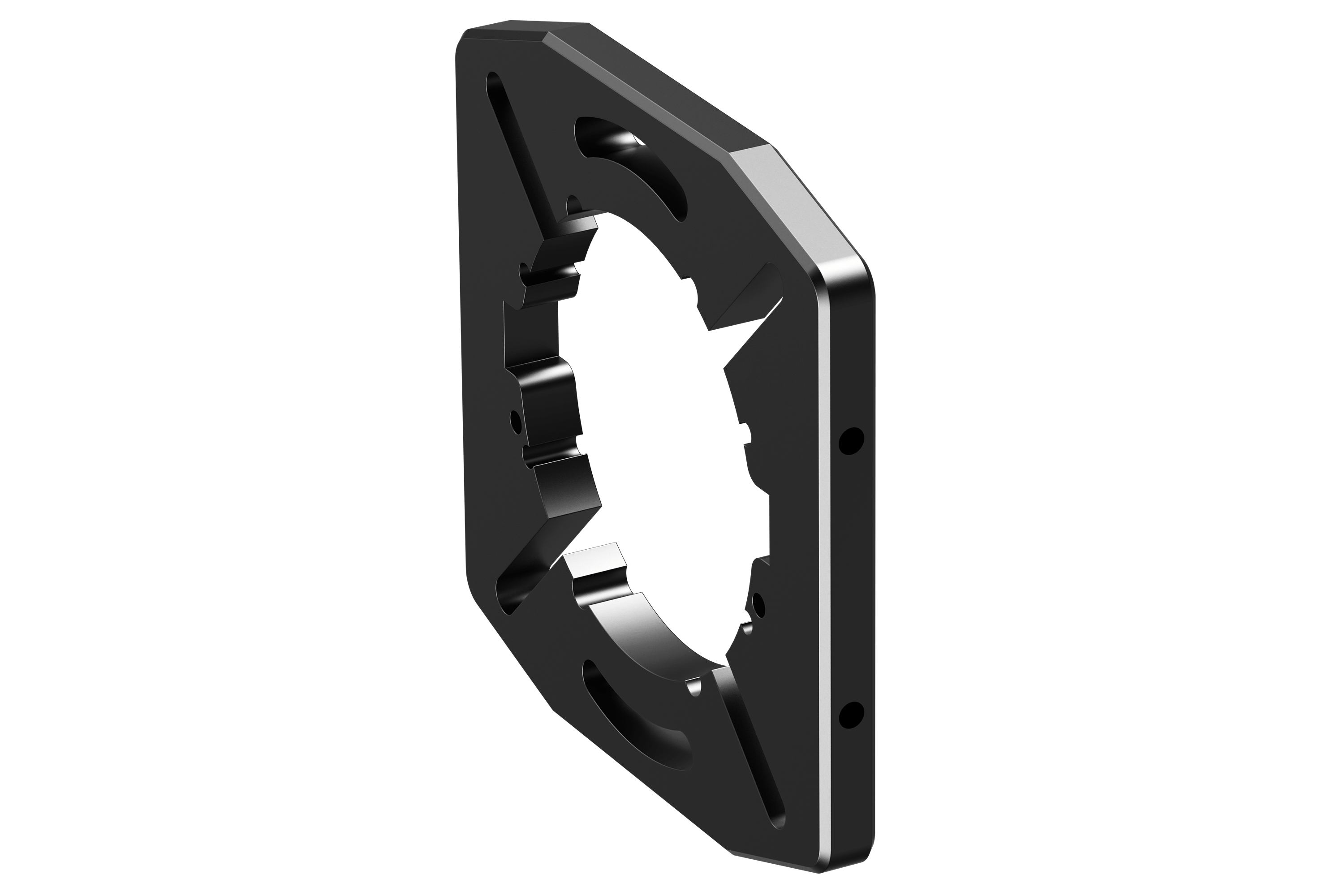

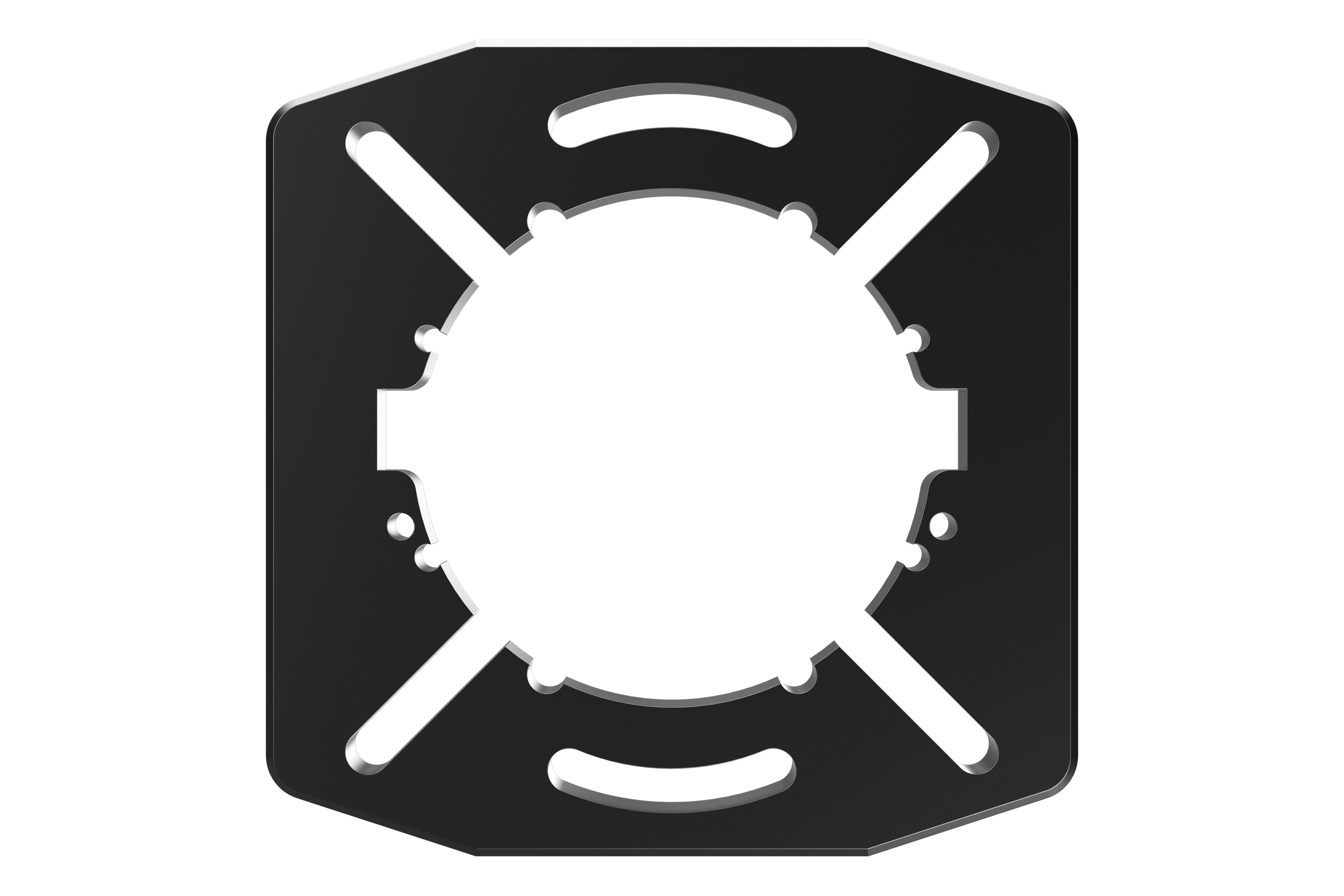

TR-One Direct Drive Wheel Mount Plate


About the TR One Wheel Mounting System

The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheel base you mount. The base structure is made of thick-walled extruded aluminium and the plates are meticulously crafted from high-quality aluminium then anodized.

The design of the aluminium plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Red Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backwards fine-tuning - to get a perfect position!



Note: This part also requires Trak Racer TR8020 Fully Adjustable Direct Fit Wheel Mount (SKU "TR80-NWMA")

  • This is an add-on plate that requires side supports (if you don't already have them - Trak Racer Part No. TR80-NWMA
  • Constructed from Tooled-Aluminium and 15mm Thick makes this plate is the most rigid on the market
  • Zero flex and no weak points
  • Quick and easy adjustments when fitted with the Trak Racer Side Mounts (not included)
  • All the necessary mounting hardware is included for a quick and easy installation

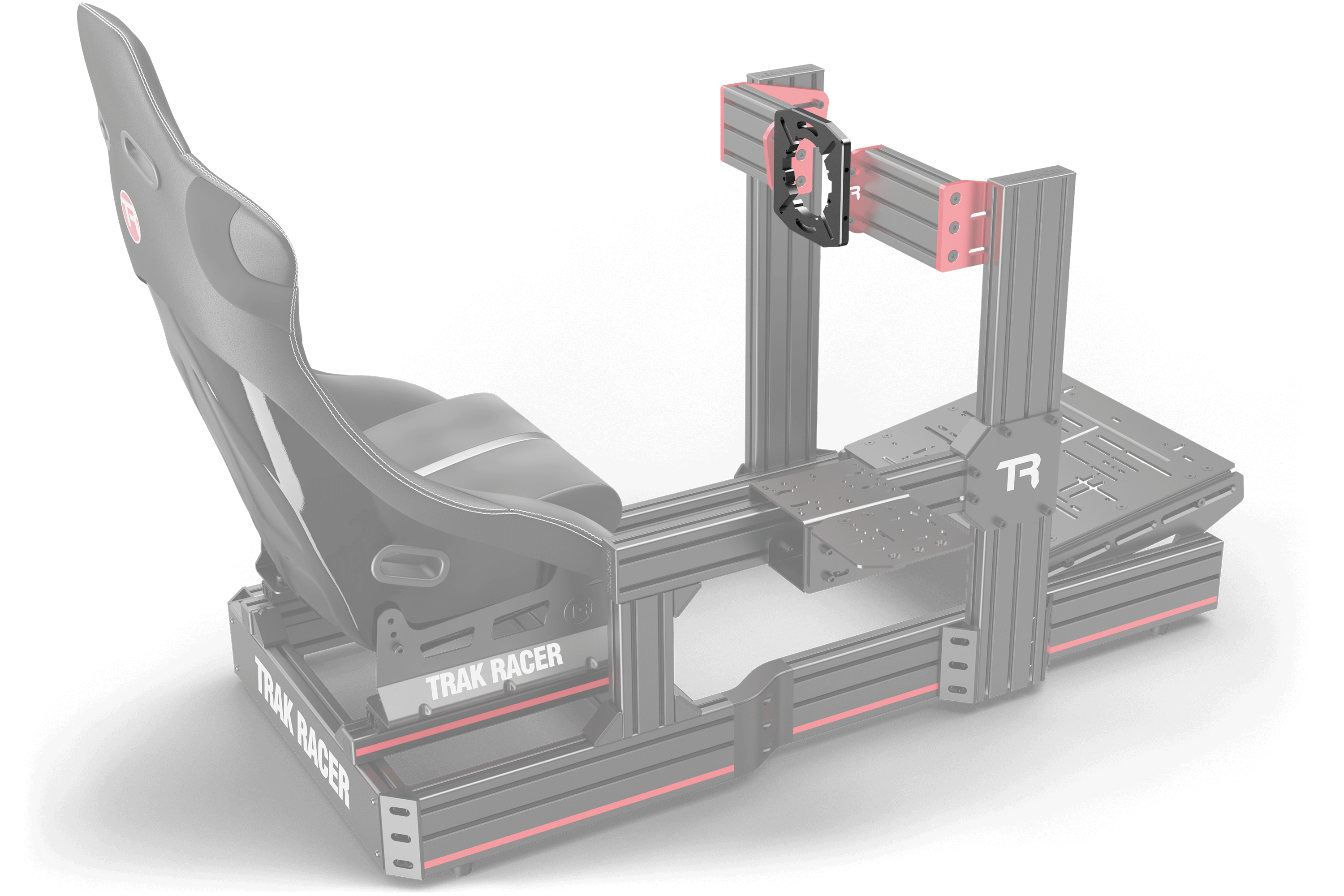

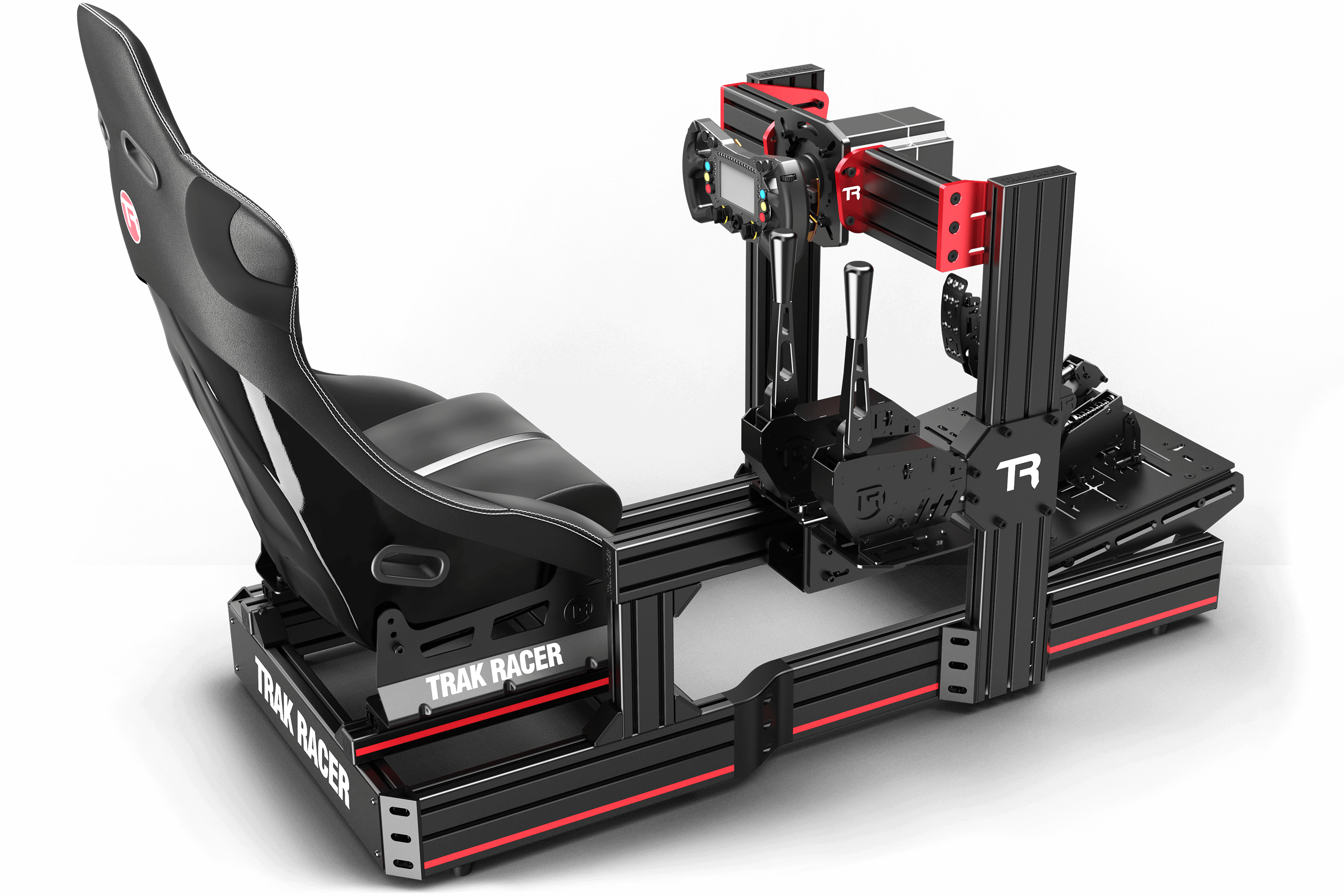

When fitted with the Side Supports (TR80-NWMA), this part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds and has a total width of 580mm

Front Direct Drive Mount Compatibility:

  • Trak Racer 13Nm and 20Nm Direct Drive Bases (Coming Q3 2024)
  • Simucube SC1 / SC2 Sport, Pro, Ultimate
  • VRS Force Pro
  • AccuForce V1/V2 (turn the top cover around to fit)
  • MiGe 130ST(small and big)
  • Bodnar 53 series
  • SIMAGIC ALPHA / ALPHA Mini/ ULTIMATE
  • Lenze MCS12 series
  • Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
  • IMMSOURCE ET3 and ET5
  • Fanatec Podium DD (installs without front plate)



Contact us if your product is not listed

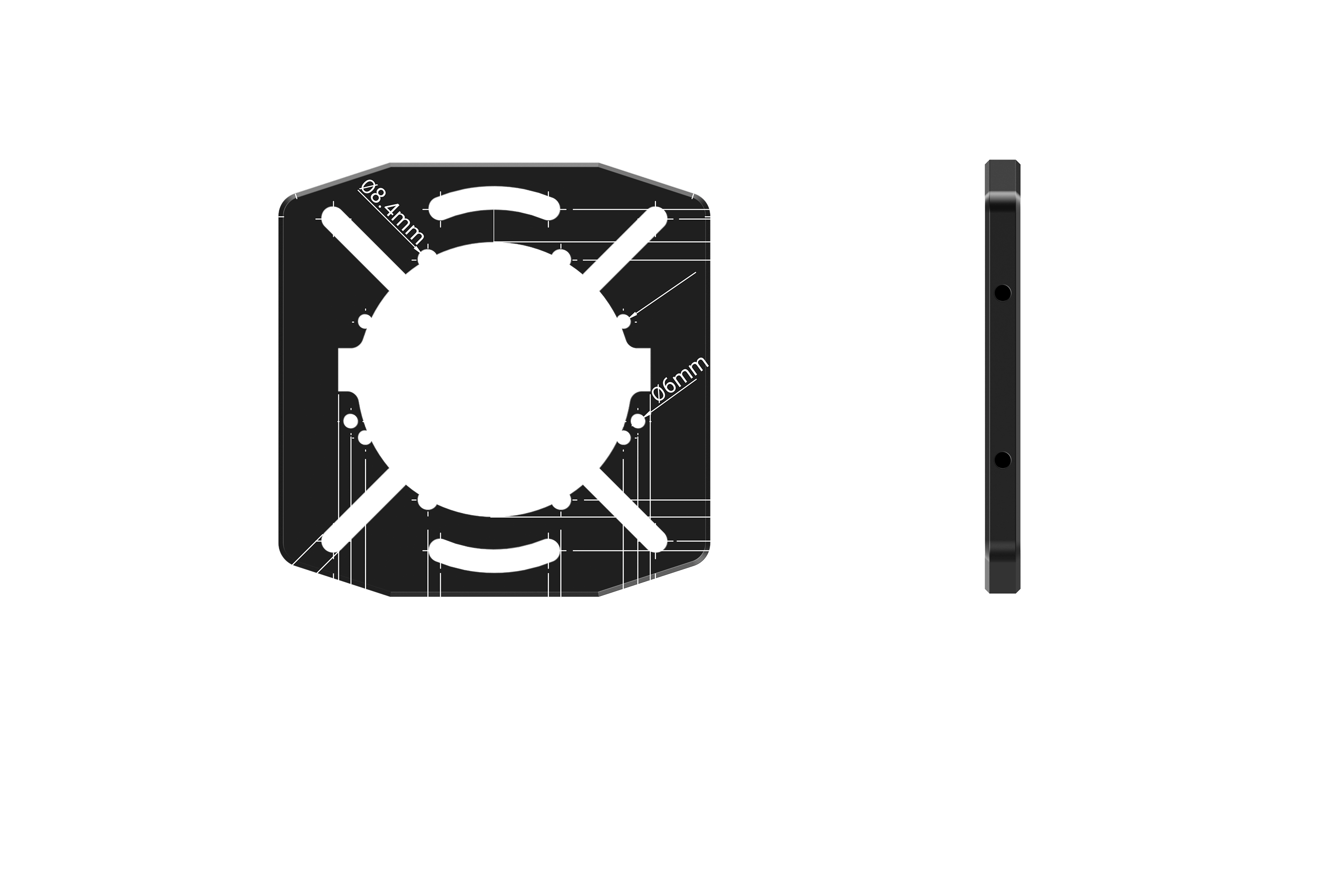

Specifications:

  • Plate thickness: 15mm
  • Material: High-Grade Aluminium
  • Plate Width (without TR80-NWMA): 180mm
  • Plate Width (with TR80-NWMA): 580mm

5 Year Warranty

Official Racing Simulator of Alpine F1 Team and Official Flight Simulator of Airbus Aircraft
Since 2008, Trak Racer has been favored by professional drivers/pilots, game centers, massive gaming events, and event hire companies. By offering the highest quality gear in the industry, Trak Racer has collaborated with big-name brands such as, but not limited to, Alpine F1, Airbus, Xbox, Ubisoft, Sony, Castrol, Accord Hotels, and more.

If you're looking to partner with Trak Racer please get in touch.

In stock
