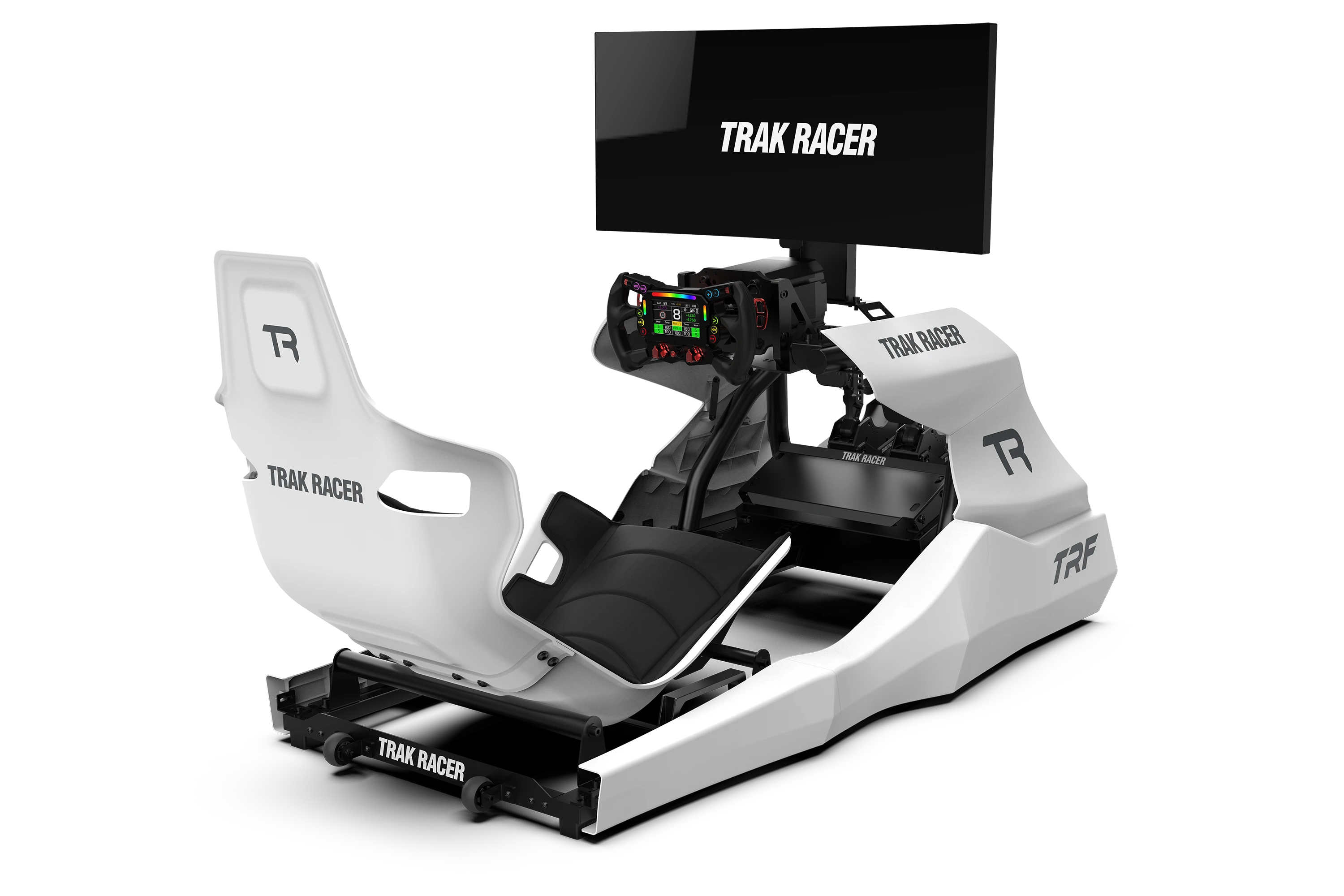

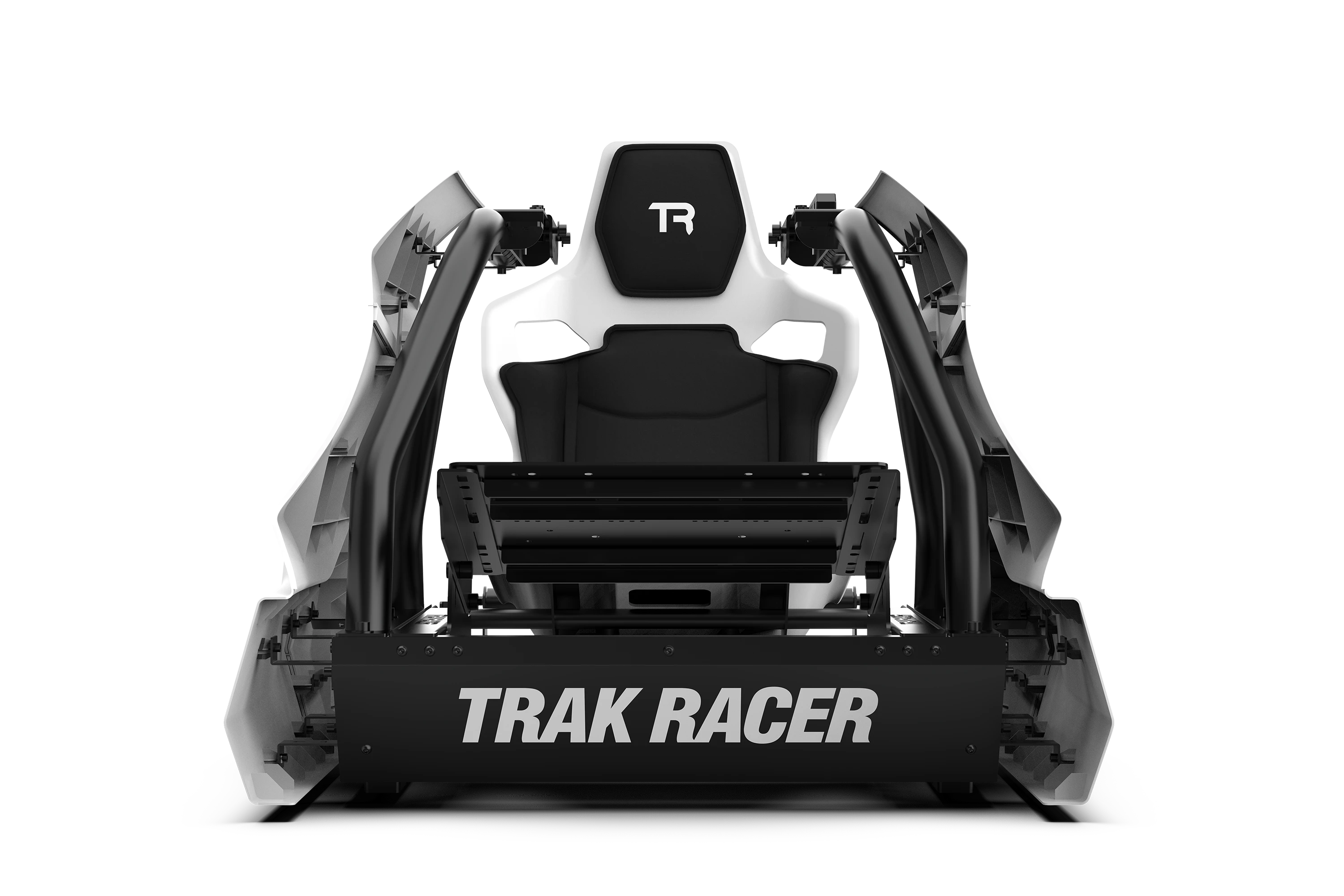

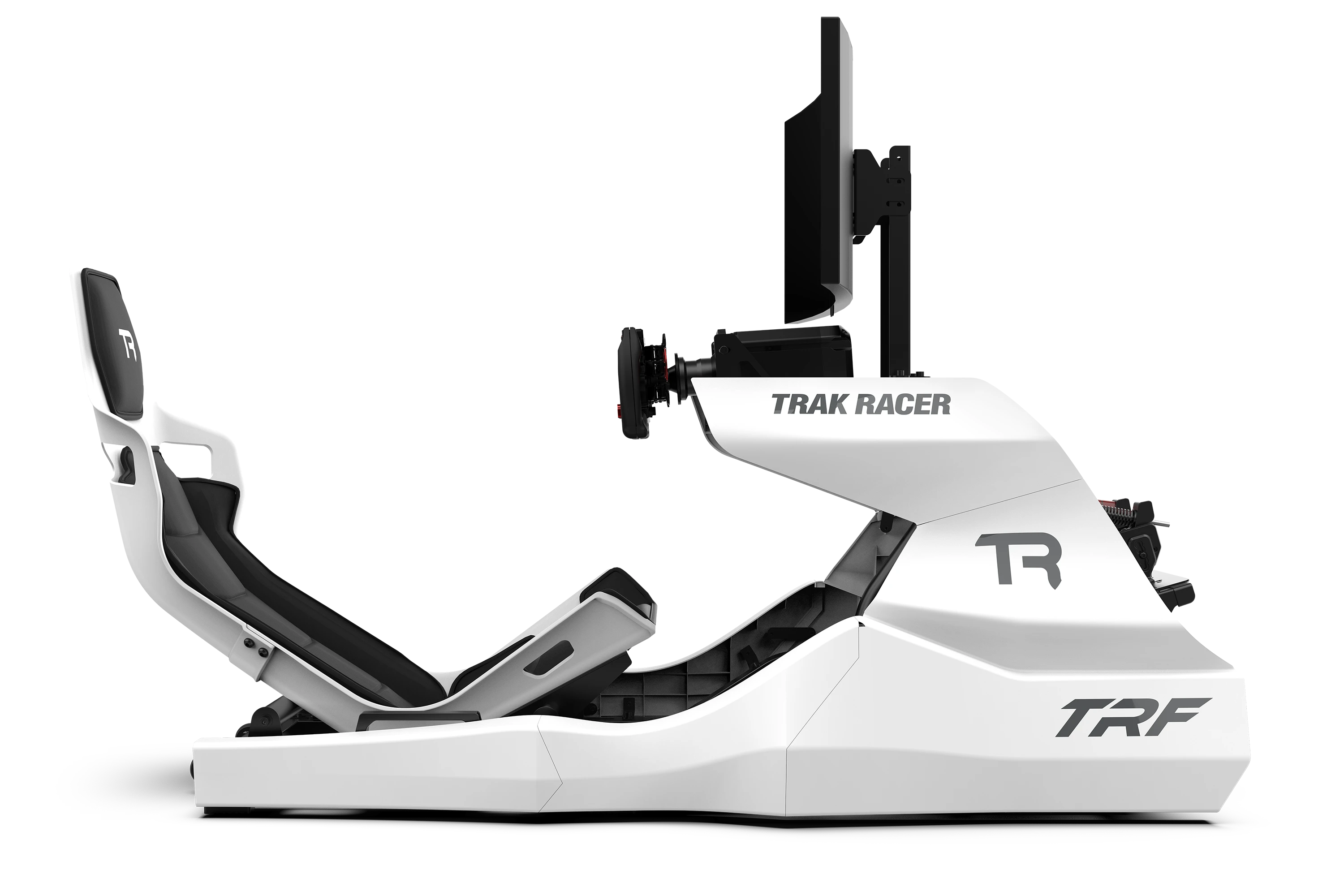

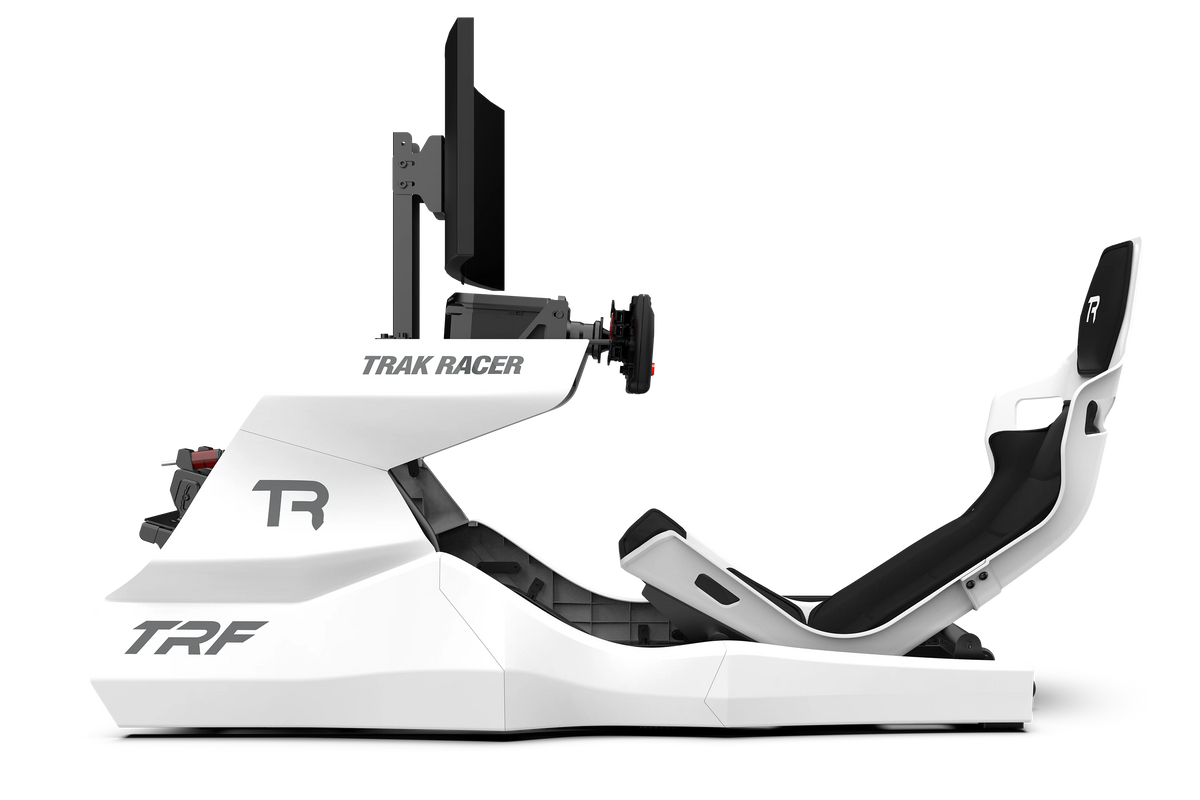

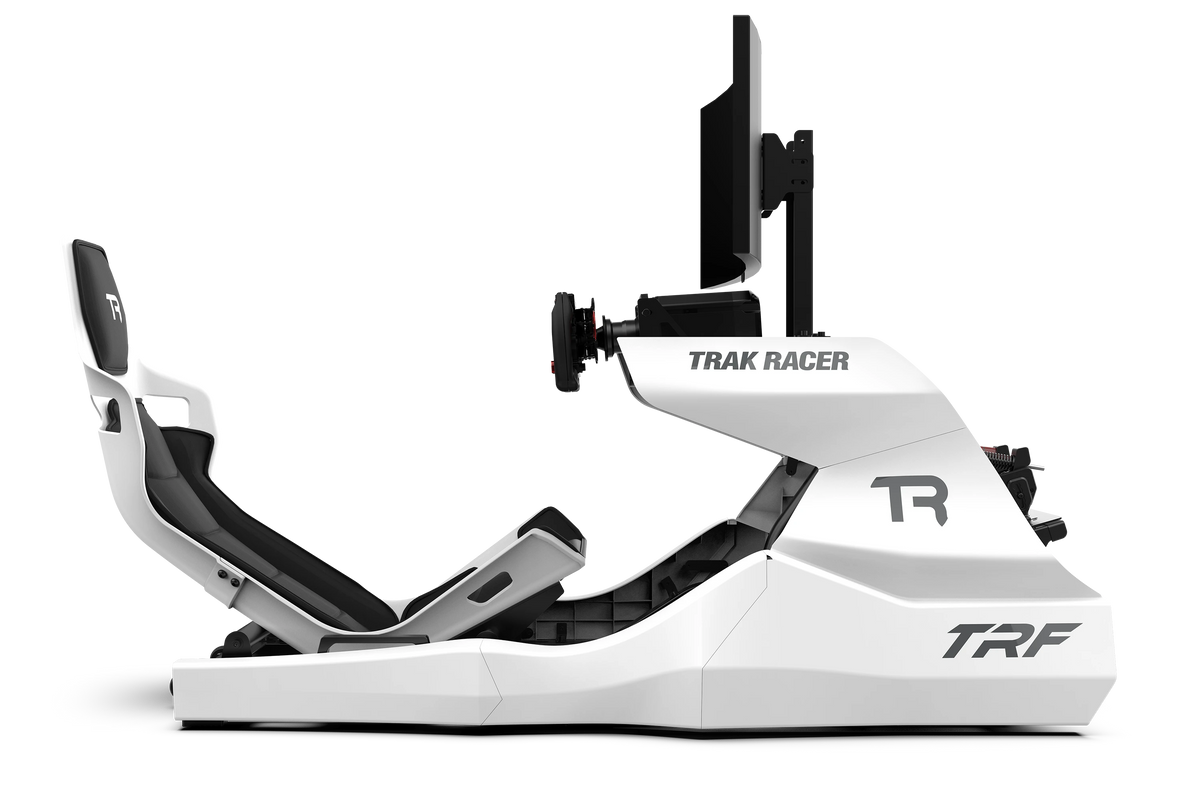

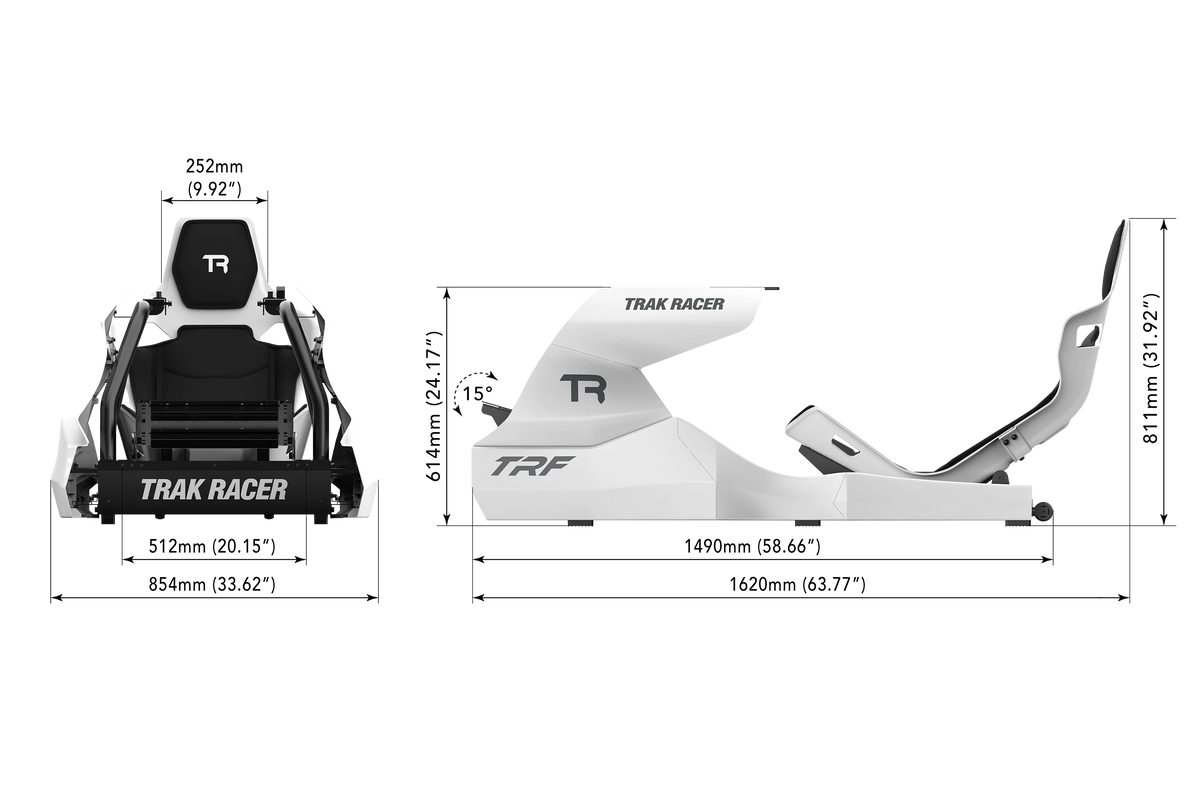

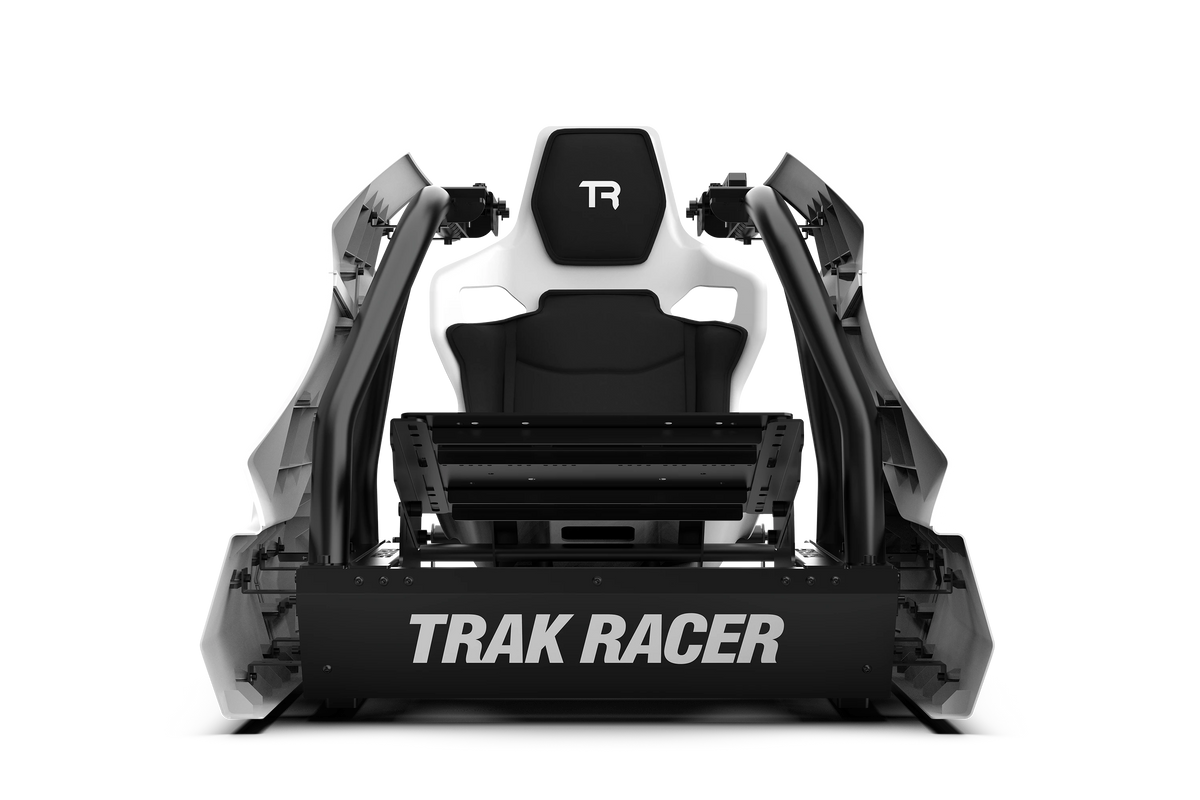

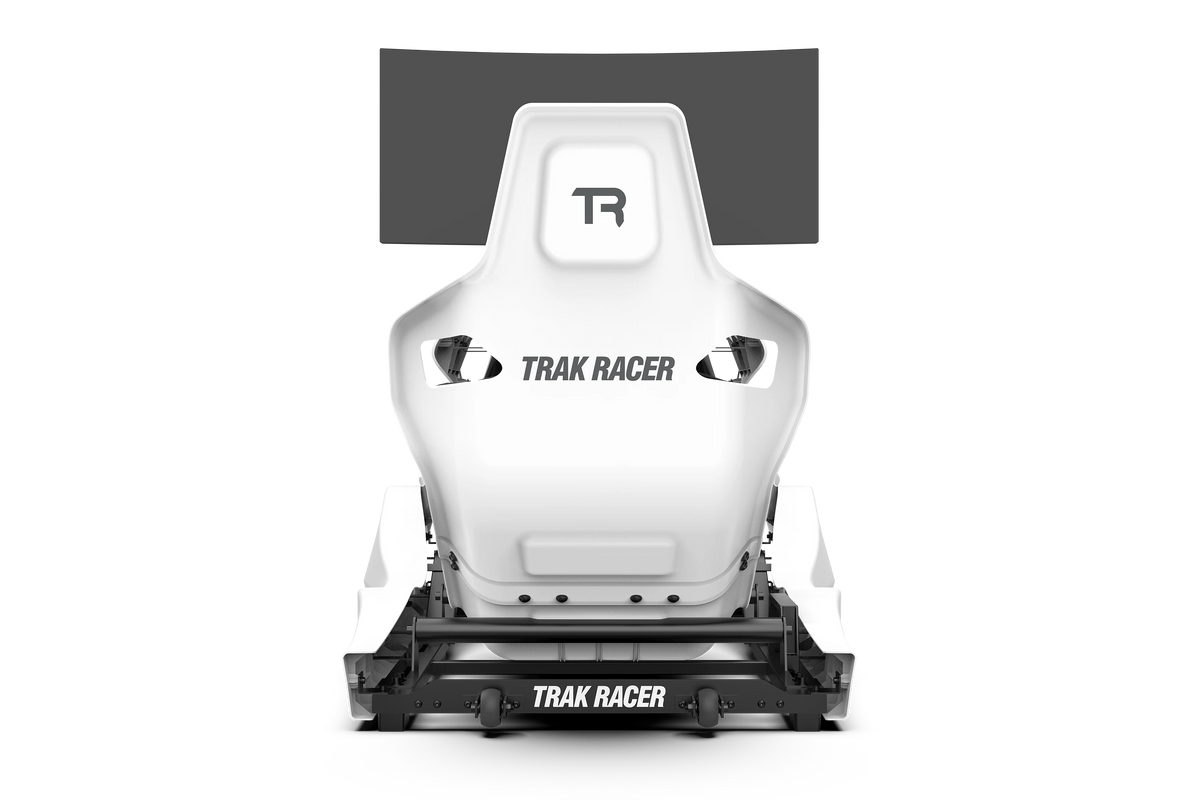

Product images are renders for illustrative purposes.

TRF Racing Simulator

SKU: TRF
Sale price $1,299.00
5.0
Stock available from December 2026
  • Formula-inspired panelling
  • Formula-style driving position
  • Strengthened pedal plate
  • Enhanced adjustable wheel mount
  • Electronics sold separately
0000000000000582911 true
ready to ship
ships from victoria, australia
SHIPPING

In stock items are shipped within 2 business days!

TRF Racing Simulator

The TRF is a dedicated formula sim racing cockpit. Built to replicate the low slung seating position and cockpit geometry of a real Formula car, every dimension and angle exists for one purpose — to put you in the seat of a Formula One™ driver.

FORMULA-INSPIRED RACING SEAT

Featuring a low seating position, ergonomic shell design and soft comfort cushions, it delivers immersive support, comfort and realism for serious sim racing and esports performance.

Electronics not included.

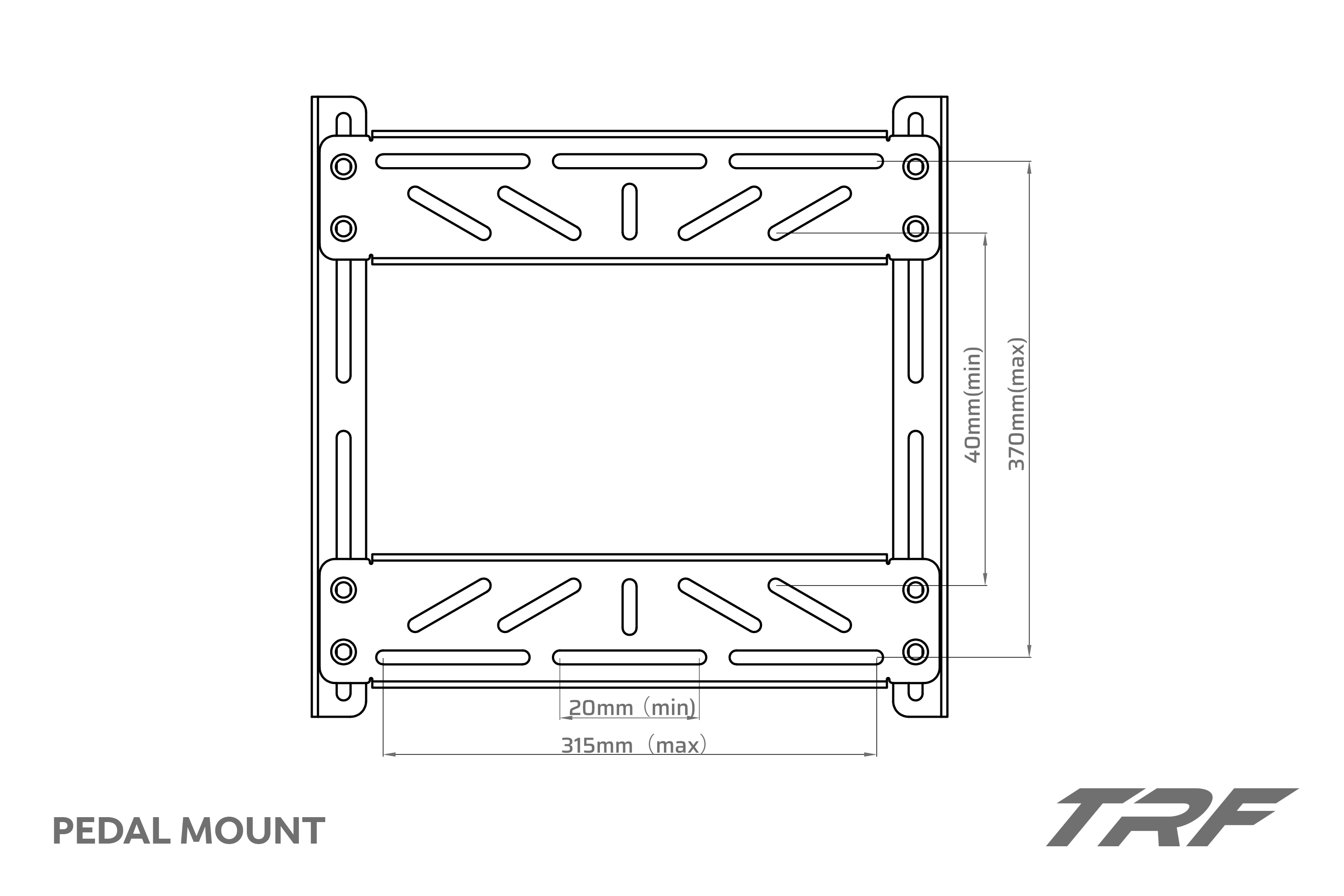

STRENGTHENED PEDAL PLATE

The TRF Racing Simulator features a reinforced pedal assembly, engineered to withstand extreme braking forces without flex. Designed for serious sim racing, it includes expanded pre-drilled mounting compatibility for the latest high-performance load-cell and hydraulic pedal sets.

Electronics not included.

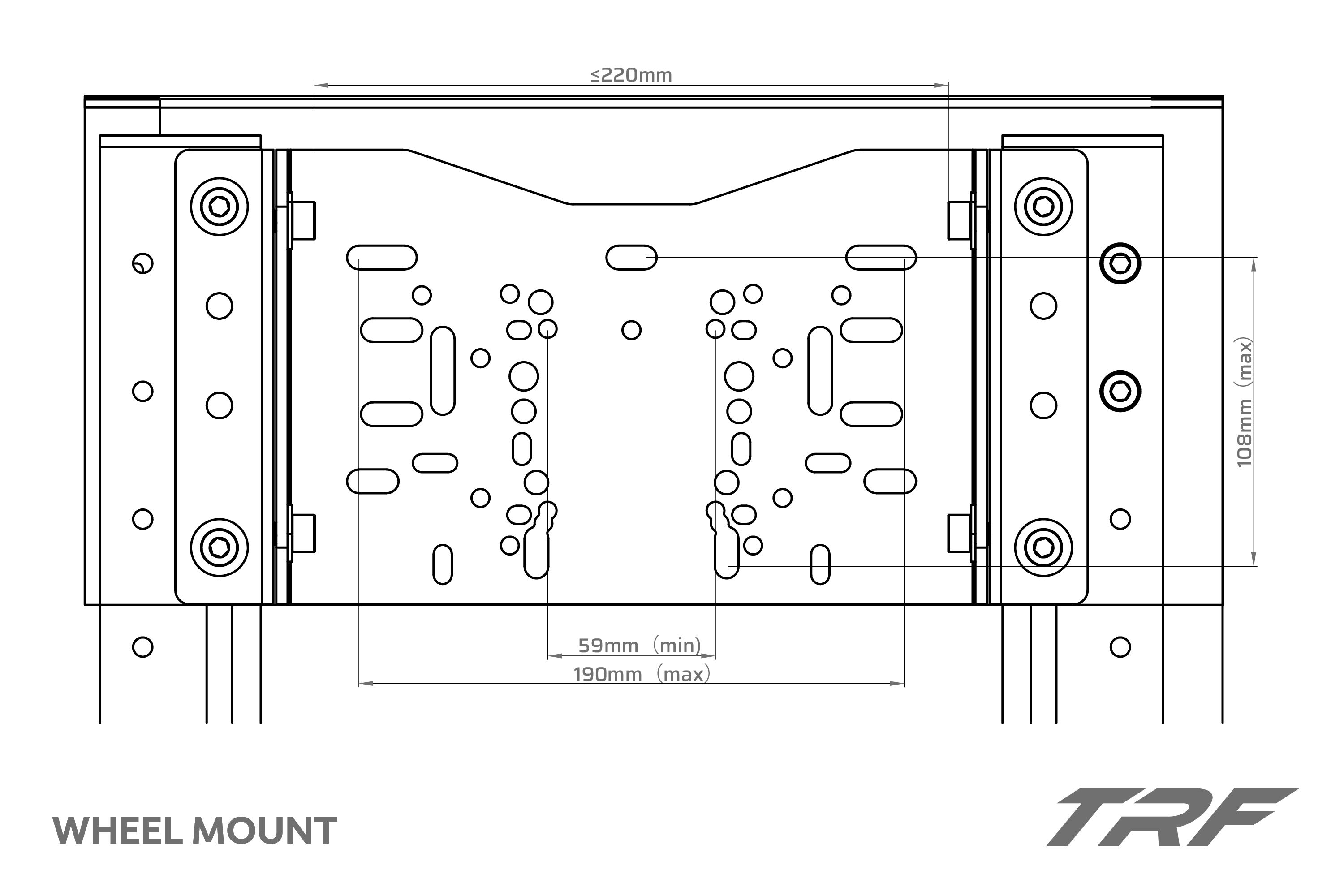

ENHANCED ADJUSTABLE WHEEL MOUNT

The TRF Racing Simulator features an upgraded wheel mount with forward, backward and angle adjustment for precise driving ergonomics. The reinforced steel construction delivers exceptional rigidity, engineered to handle up to 25Nm direct drive wheel torque without flex during intense racing sessions.

Electronics not included.

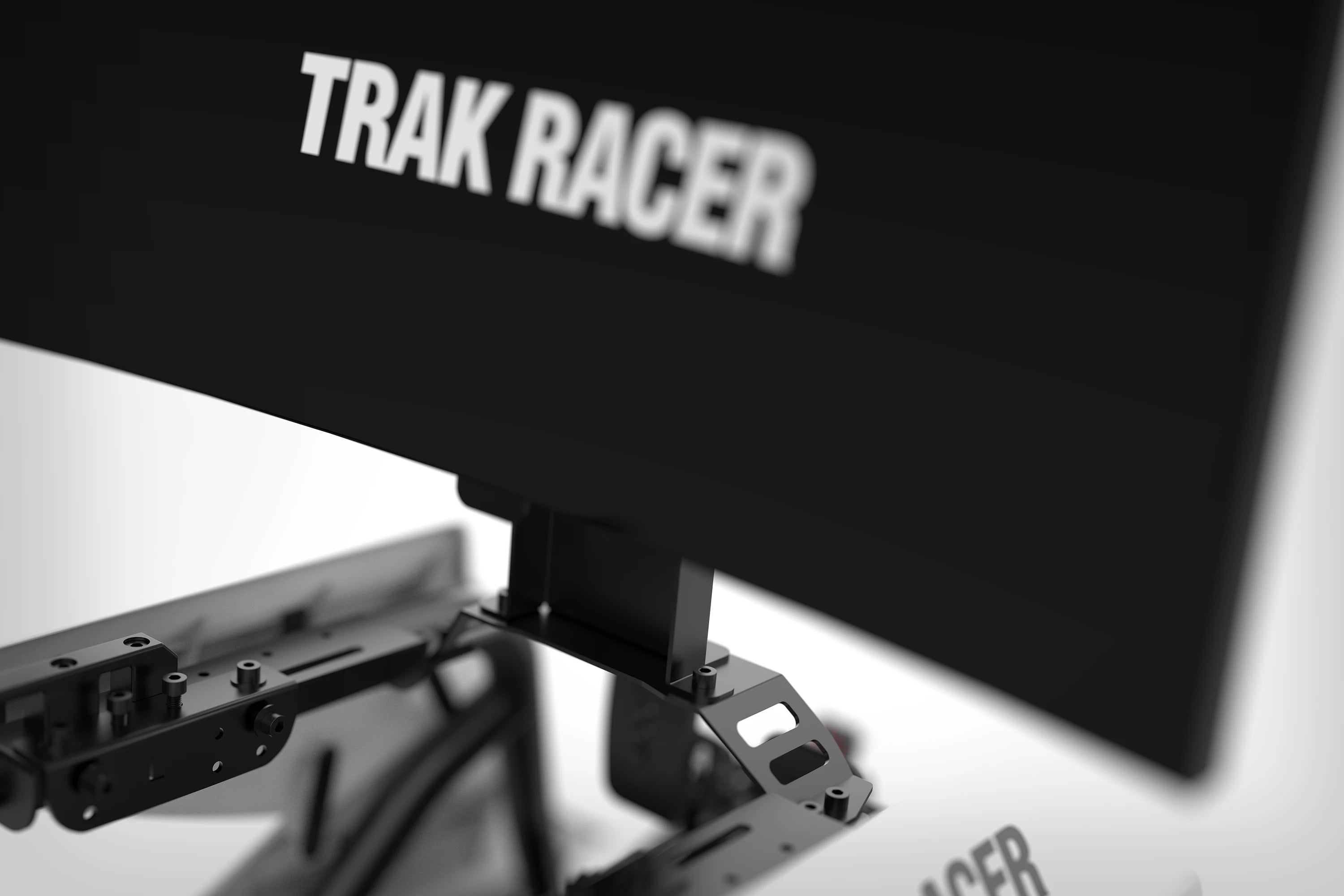

OPTIONAL INTEGRATED SINGLE MONITOR STAND

Complete your TRF Racing Simulator with an optional integrated single monitor stand, featuring height, forward and backward adjustment for optimal viewing position. The reinforced design delivers improved rigidity and stability for an immersive racing and esports experience.

Electronics not included.

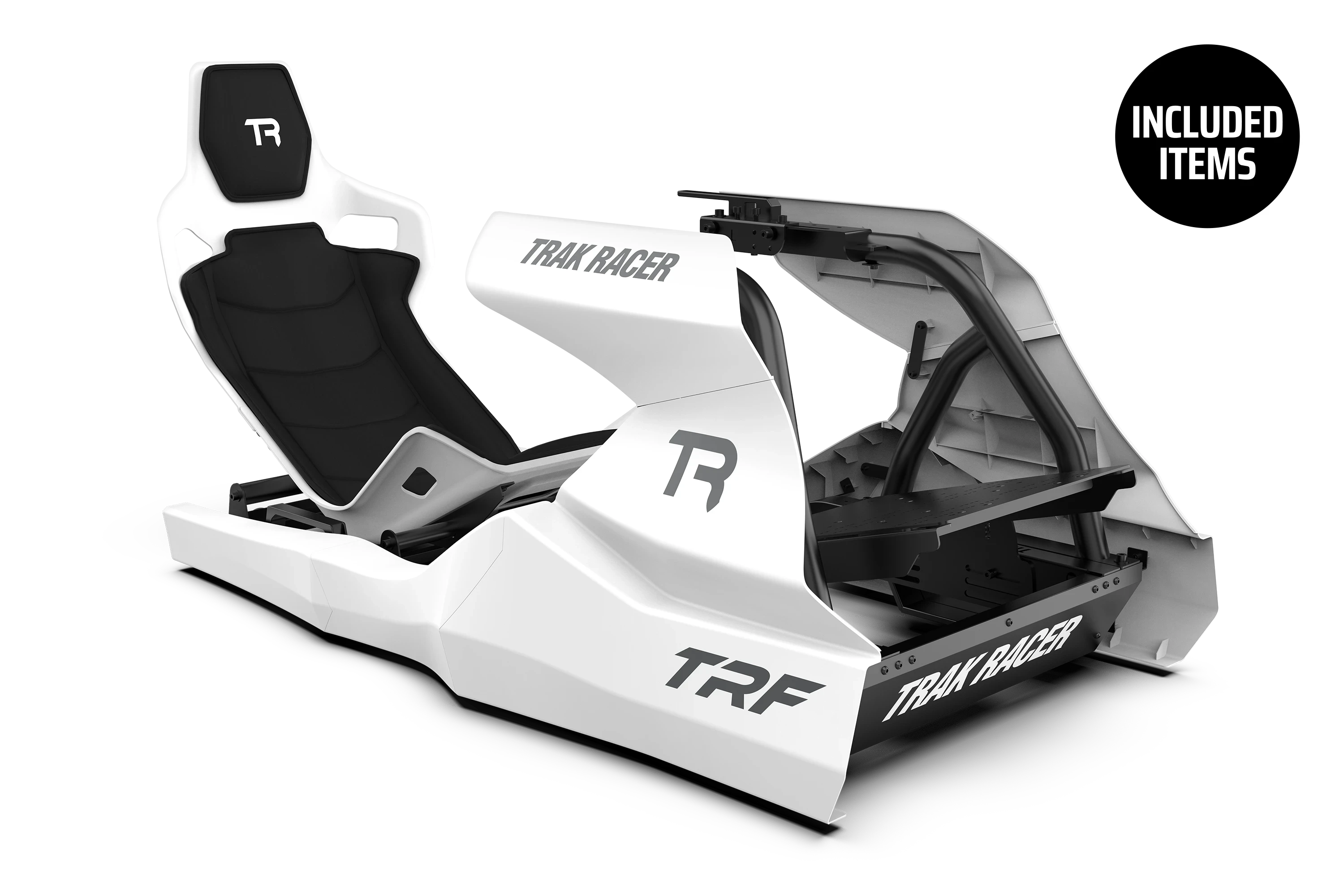

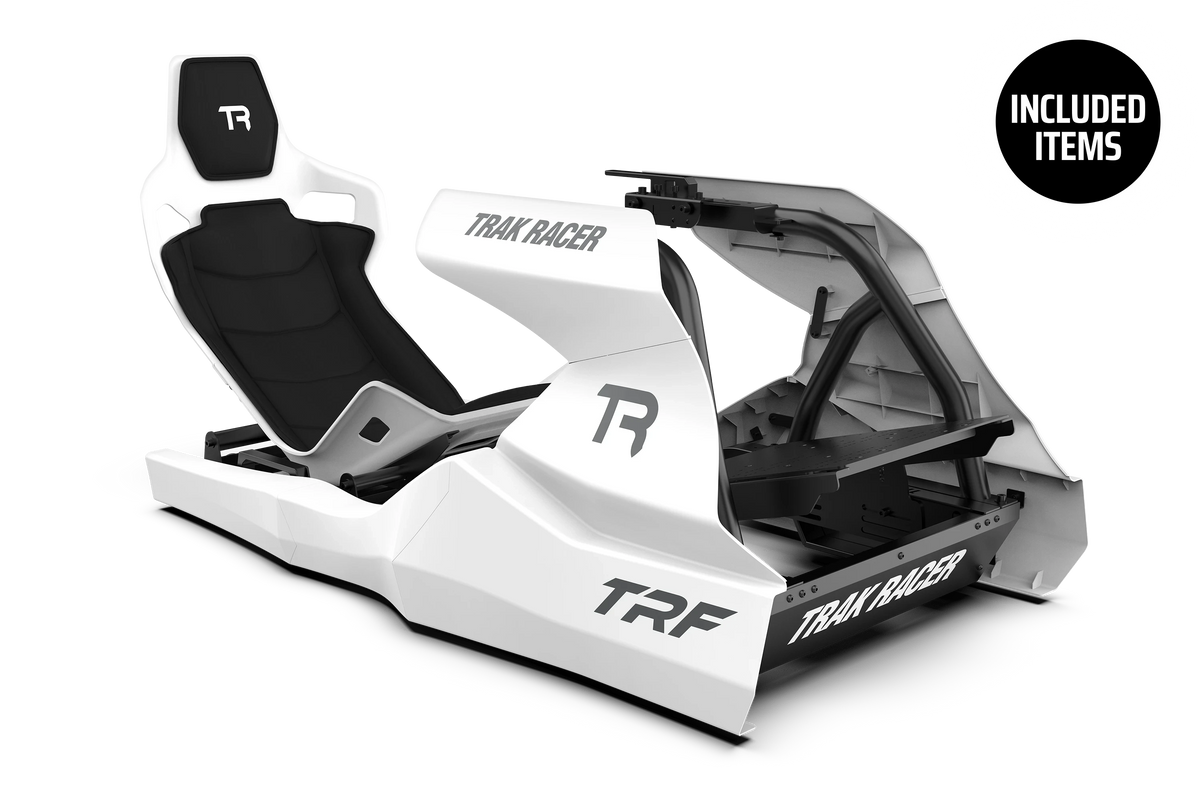

In the box

TRF Racing Simulator frame, seat, pedal plate, wheel mount, and all mounting hardware. Monitor stand sold separately. Electronics not included.

SPECIFICATIONS

  • Product Name
  • TRF Racing Simulator

  • Product Type
  • Formula-style racing simulator cockpit

  • Driving Position
  • Low Formula racing position

  • Chassis Material
  • Industrial-strength heavy-duty steel with Premium powder-coated finish

  • Panel Construction
  • ABS plastic

  • Included Seat
  • Formula-inspired seat

  • Seat Design
  • Formula-inspired ergonomic shell

  • Seat Material
  • Die-cast aluminium with soft cushions

  • Wheelbase Compatibility
  • Supports major direct drive and belt drive wheelbases

  • Maximum Supported Wheel Torque
  • Up to 25Nm direct drive systems

  • Steering Wheel Mount
  • Reinforced adjustable wheel mount

  • Wheel Mount Adjustments
  • Height, angle, forward and backward adjustment

  • Wheel Mount Compatibility
  • Pre-drilled for major steering wheel brands

  • Pedal Mount Type
  • Reinforced pedal mounting system

  • Pedal Mount Adjustments
  • Adjustable angle and pedal distance

  • Pedal Compatibility
  • Compatible with major pedal manufacturers and load-cell pedals

  • Floor Protection
  • Hardwood-safe rubber floor protectors included

  • Monitor Stand
  • Optional integrated single monitor stand

WARRANTY

Backed by a 5 Year Warranty covering materials and manufacturing defects under standard residential use. Plastic body panels and seats included with simulator packages are covered by a separate 2 Year Warranty.

Front Direct Drive Mount Compatibility

Trak Racer Direct Drive (All variants) Wheelbase

  • AccuForce V1/V2 (Turn the top cover around to fit)
  • Bodnar 53 series
  • Fanatec Podium DD (Installs without front plate)
  • Lenze MCS12 series
  • Immsource ET3 and ET5
  • Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
  • MiGe 130ST (Small and big)
  • Ricmotech Mini-Mite Direct-Drive Steering System Base
  • Simucube SC1 / SC2 Sport, Pro, Ultimate
  • Simucube SC3 Sport, Pro & Ultimate
  • Simagic Alpha / Alpha Mini / Ultimate
  • VRS Force Pro

Steering Wheelbase Deck Compatibility

Trak Racer Direct Drive (All variants) Wheelbase

  • Asetek La Prima, Forte, Invicta & Initium wheel bases (With Adaptor: TR-APDD)
  • AccuForce V1/V2
  • Conspit Ares 12nm & Ares Platinum 20nm
  • Fanatec Elite, Clubsport, Clubsport DD, Clubsport DD+, Podium DD, Podium DD1/DD2, CSL DD, Fanatec GT DD Pro and CSL Elite
  • Logitech G25, G27, G29, G920, G923, Logitech G PRO & RS50 Base
  • Moza R3, R5, R9, R12, R16, R21 DD Wheel Base including updates (The updated R9, R12 and R16 can be front mounted with additional hardware)
  • MOZA R21 Ultra & R25 Ultra (Can also be front mounted with additional mounting brackets)
  • Nacon REVOSIM RS Pure (2025)
  • PXN VD4 / VD6 / VD10, V12, V12 Pro (2025)
  • SIMAGIC Alpha EVO, EVO Sport & EVO Pro (Side mounting with Simagic side mounting kit)
  • Simagic Alpha Mini DD, Alpha DD, Alpha Ultimate Direct Drive
  • Thermaltake G6 Direct Drive Wheelbase
  • Turtle Beach Velocity One Race
  • Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II, T598 & T818 with a Thrustmaster Adaptor
  • VNM DD Bases Elite 18 Nm, Supreme 25 nm, VNM DD Xtreme 32 Nm

Other Wheel Bases — Requires Optional Bracket (Trak Racer Direct Drive Mount)

Trak Racer Direct Drive (All variants) Wheelbase

  • AccuForce V1/V2 (Turn the top cover around to fit)
  • Bodnar 53 series
  • Fanatec Podium DD (Installs without front plate)
  • Immsource ET3 and ET5
  • Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems)
  • Lenze MCS12 series
  • MiGe 130ST (Small and big)
  • Ricmotech Mini-Mite Direct-Drive Steering System Base
  • Simucube SC1 / SC2 Sport, Pro, Ultimate
  • Simucube SC3 Sport, Pro & Ultimate
  • Simagic Alpha / Alpha Mini / Ultimate
  • VRS Force Pro, DFP20, DFP15 wheelbases

Asetek Front Mount Compatibility (TR-DDBRASET)

  • Invicta 27nm Wheelbase
  • Forte 18nm Wheelbase
  • La Prima 12nm Wheelbase

Direct Drive Side Mount for Fanatec Compatibility

  • Fanatec Podium DD, DD1/DD2 (Requires 2 x 5 mm spacer plates)
  • Fanatec GT DD Pro (Requires 4 x 5 mm spacer plates)
  • Fanatec CSL DD (Requires 4 x 5 mm spacer plates)
  • Clubsport DD, Clubsport DD+ (Requires 4 x 5 mm spacer plates)

Pedal Deck Compatibility

  • Asetek La Prima, Forte, Invicta, Invicta T.H.O.R.P. II & Initium pedals
  • AW Prime Pedals Set
  • BJ Sim Racing Steel Series, 1000psi Hydraulic
  • Cammus LC100 Pedals (2024)
  • Conspit CPP & CPP.LITE Pedals
  • Cube Controls Hydraulic SP01
  • DC Sim Racing DC3
  • Fanatec CSL Elite Pedals, ClubSport V1/V2/V3 (Including Inverted Pedals)
  • Ghost Sim Racing Phantom-PRO Pedals (2023–25)
  • HPP PRX 3P, JBV 2/3 Pedal System
  • Heusinkveld Ultimate/Ultimate+, Sprint and Pro
  • JCL Hydraulic Pedals
  • Logitech G25, G27, G29, G920, G923, G Pro pedals
  • Meca Cup 1-2, Meca Cup1-3, Clutch and Base Plate, Meca Cup 1 Evo Hydraulic & LC
  • Moza CRP, SRP Pedal set with and without SRP plate & Moza Booster ActivePedal
  • OBP Pro Race V2 Sim Pedal System
  • Protosimtech PT2
  • Quaife Throttle Pedal and Brake
  • Racewerk S1 Hydraulic Sim Racing Pedals
  • Ricmotech RealGear GTPRO3 Pedals
  • SRP GT/GT-R/Formula/Formula-R
  • Simagic P2000, P1000 (All variants) & P500 Pedals
  • Simucube Co-Pedal 2-in-1 Passive Throttle / Clutch Pedal & ActivePedal
  • Simworx Pro Series
  • Simgrade pedal plate and VX PEDAL
  • Sim Coaches P1-3
  • Simtrecs ProPedal GT (2023)
  • SimJack Pro Pedals, SimJack Ultimate UT Pedals
  • Simforge Mark-2 Pedals, Simforge Mark-1
  • Sim-Lab XP1 Pedals (2024)
  • Simtag PT-1 Modular Pedals
  • Trak Racer Loadcell Pro Pedals
  • Thera Pedals
  • Turtle Beach Velocity One Race pedals
  • Thrustmaster T-LCM, T3PA, GT Ed, T3PGT, T3PA PRO add-on and T500, T150 pedals
  • Velazquez Engineering PRO+ Hydraulic
  • Venym ATRAX Black Pedals (2024)
  • VRS DirectForce Pro Pedals
  • VNM V1 Pedals
  • Wave Impetus
  • XP1 Loadcell Pedal Set
  • 3DRAP Ngasa

Shifter Mount Compatibility

  • Trak Racer Sequential Shifter Pro
  • Asetek Forte S-Series Shifter (2022)
  • Aiologs SQ Shifter
  • BJ Sim Racing Shifter 3.0
  • BDH Race Sim Hardware H1SQ & H2SQ
  • DSD SQ Shifter
  • Fanatec ClubSport Shifter, SQ
  • Frex H Pattern
  • Heusinkveld SQ Shifter
  • Jinx Shifter — Additional mount required (TR80-BIGSHIF)
  • Logitech RS Shifter & G-Shifter
  • MOZA HGP Shifter, SGP Sequential Shifter & the AB9 FFB Shifter
  • MME Motorsport Sequential Shifter (Indie, 2023–25)
  • Meca Cup Shifter
  • PRO-SIM, PRO-SIM LITE & PRO-SIM SEQUENTIAL
  • Quaife PSL Sequential V2, Sequential, and H Pattern — Additional mount required (TR80-BIGSHIF)
  • Simworx Pro Series — Additional mount required (TR80-BIGSHIF)
  • SIMAGIC DS-8X H-Pattern, Q1S & TB-1 Shifters
  • SIMAGIC Q1S Sequential Shifter (2024)
  • Sim-Lab SQ1 Sequential Shifter (2023/24)
  • SimJack Sequential Shifter
  • Thrustmaster TH8A, TSS-PRO, RSTSS, TSS+
  • Turtle Beach VelocityOne Multi-Shift Shifter & Handbrake
  • Venym ATRAX Black Sequential Shifter
  • VNM Simulation Sequential Shifter

Optional Handbrake Mount Compatibility

  • Trak Racer Loadcell Pro Handbrake
  • Asetek SimSports – Forte Handbrake (2023)
  • Aiologs Handbrake (2022)
  • BJ Sim Racing – Handbrake 2.0 (2024)
  • Conspit – H3 Dual-mode Hydraulic Handbrake (2024)
  • DSD Hydraulic Handbrake
  • Fanatec Clubsport Handbrake (V1/V2)
  • Ghost Sim Racing – Handbrake (2023–25)
  • Heusinkveld Handbrake
  • Moza Racing – HBP Handbrake (2023)
  • Meca Handbrake
  • Prosim Handbrake Digital/RX Analog
  • Quaife Handbrake
  • RealGear RALLYpro Handbrake
  • Sim-Lab – XB-1 Handbrake (2023)
  • Simworx Pro Series Handbrake
  • SimJack – Handbrake (2024)
  • Simagic TB-1 Handbrake, Simagic – TB-RS Hydraulic Handbrake
  • Thrustmaster TSS+
  • Turtle Beach VelocityOne Multi-Shift Shifter & Handbrake
  • Venym – ATRAX Black Handbrake
  • VNM Simulation – VNM Handbrake V1.5

Contact us if your product is not listed.
