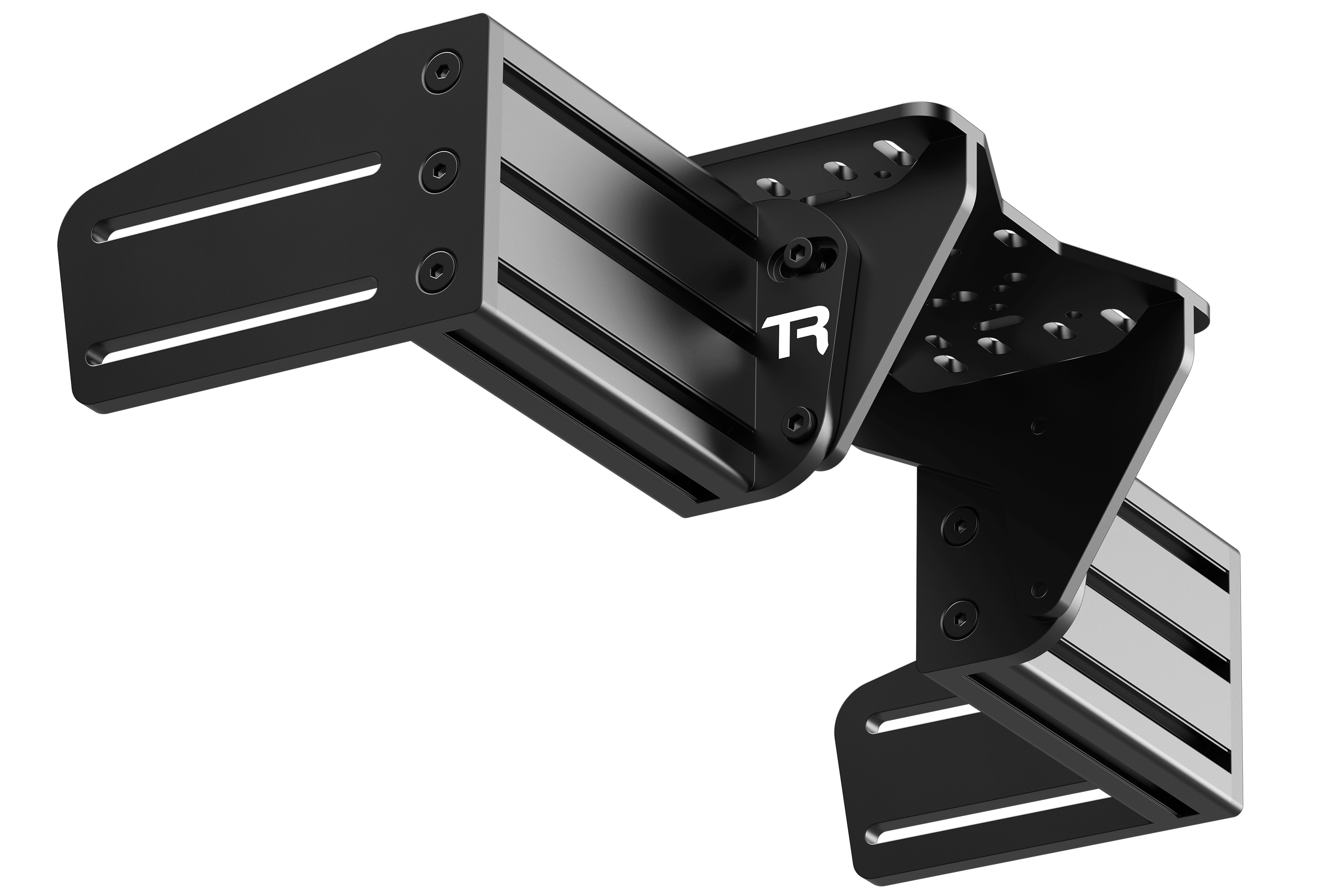

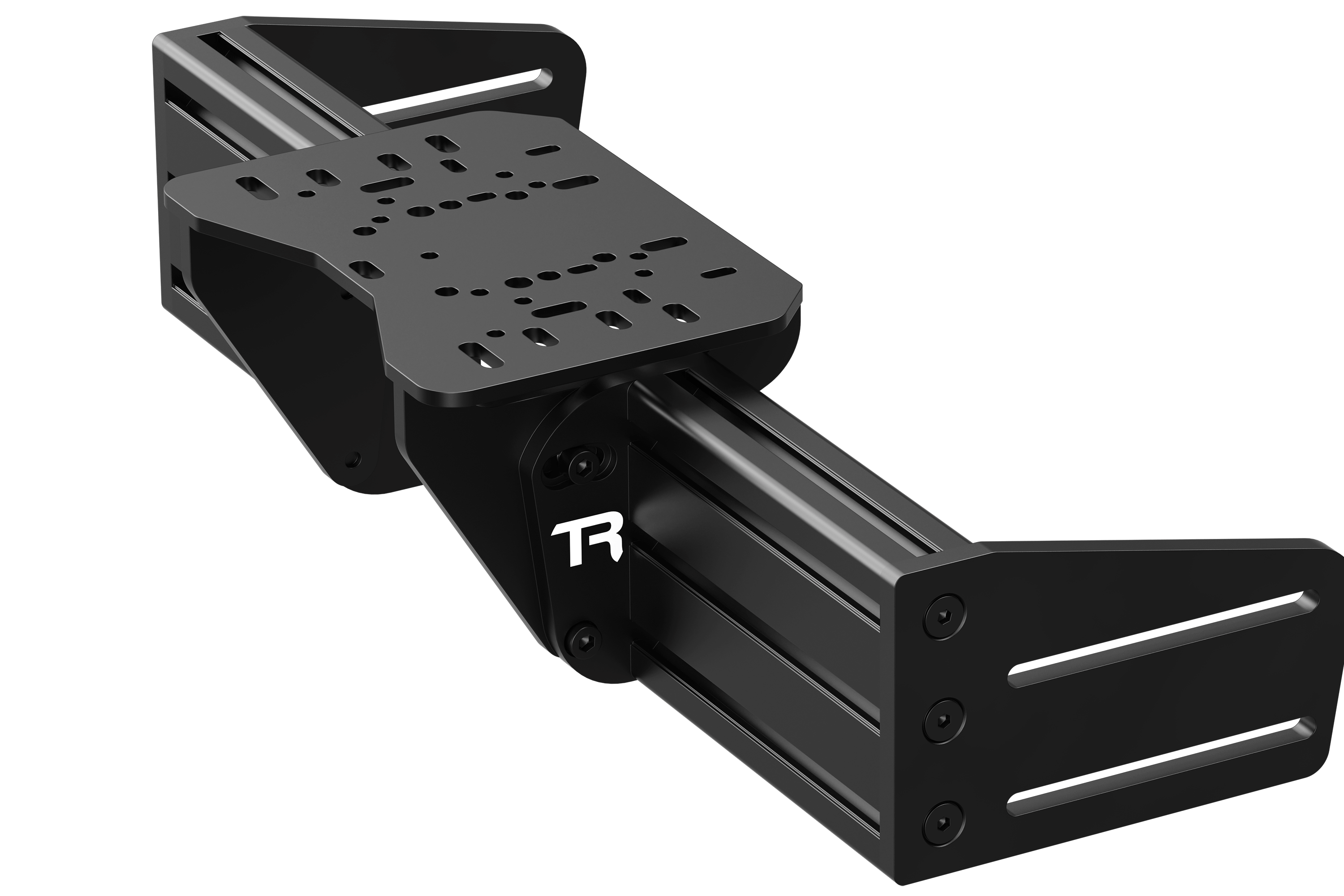

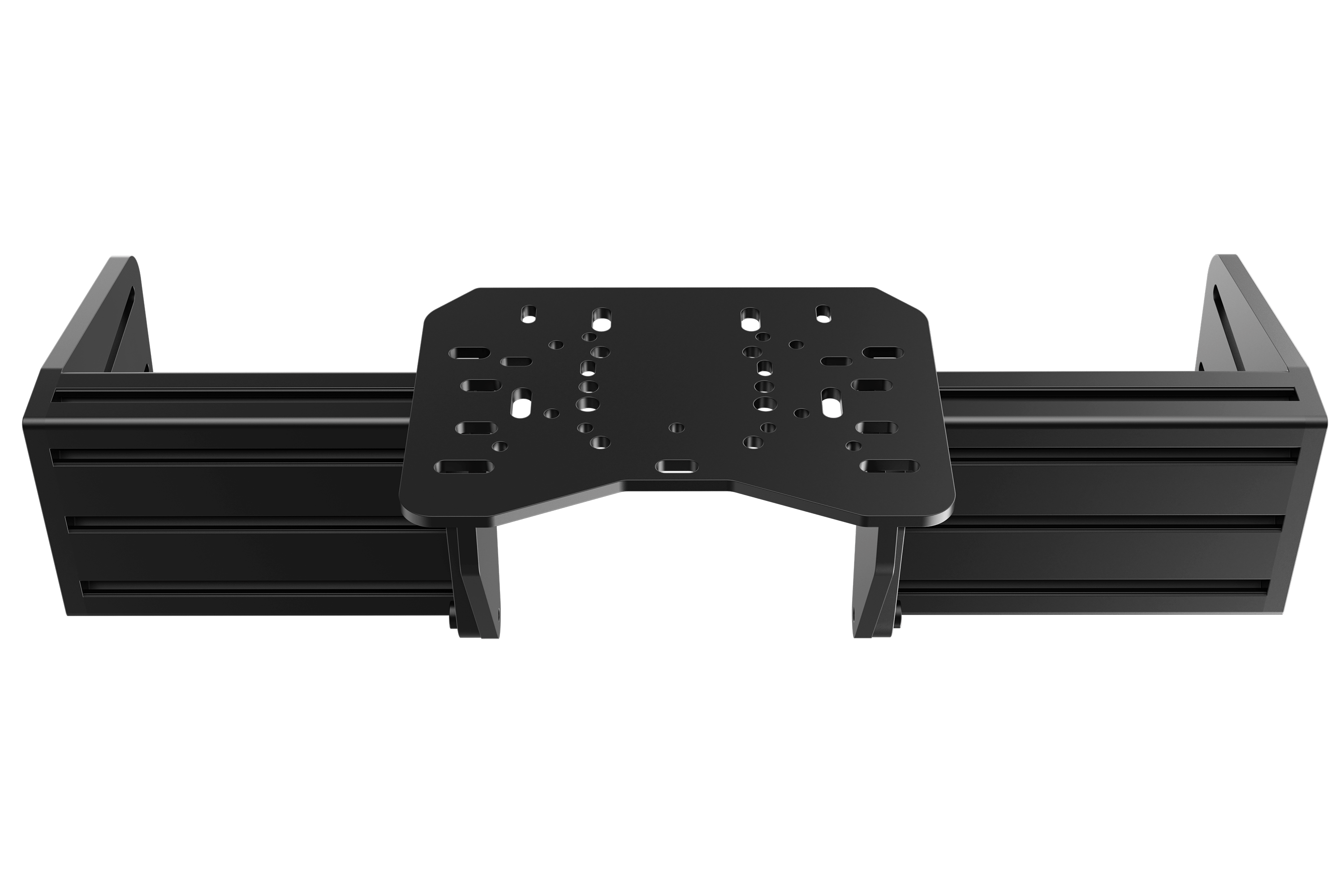

The design of the aluminum plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Black Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backward fine-tuning - to get a perfect position!
5 Year Warranty
Official Racing Simulator of Alpine F1 Team and Official Flight Simulator of Airbus Aircraft
Since 2008, Trak Racer has been favored by professional drivers/pilots, game centers, massive gaming events, and event hire companies. By offering the highest quality gear in the industry, Trak Racer has collaborated with big-name brands such as, but not limited to, Alpine F1, Airbus, Xbox, Ubisoft, Sony, Castrol, Accord Hotels, and more.
If you're looking to partner with Trak Racer please get in touch.
Angle Adjustment: Fully Adjustable Mount with up to 12° degree tilt angle PLUS greater angle adjustments of the outer plates
Material: Anodised Black Aluminium Plates, Extruded Aluminium Profile, and Carbon Steel
Rig Compatibility: This part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds.
Not Compatible with Trak Racer TR80-LITE due to the wheel uprights only being 660mm/26" tall (compared to 780mm/30.7" on the TR80, TR120, and TR160).
Full Mount Width (including 120 x 40mm profile): 580mm/22.83"
Steering Wheel Deck Compatibility:
- Trak Racer 13Nm and 20Nm Direct Drive Bases (Coming Q3 2024)
- Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II
- Thrustmaster T818
- Logitech G25, G27, G29, G920, G923, Logitech G PRO
- Fanatec Elite, Clubsport, Clubsport DD, Clubsport DD+ Clubsport DD, Clubsport DD+, Podium DD1/DD2, CSL DD , Fanatec GT DD Pro and CSL Elite
- AccuForce V1/V2
- SIMAGIC M10
- Moza R5, R9, R16, R21 DD Wheel Bases
- Simagic Alpha Mini
- Asetek La Prima, Forte and Invicta DD wheel bases (plate may require new mounting holes)
- Cammus 15Nm Direct Drive
Other Wheel Bases - may require mounting bracket (Trak Racer Direct Drive Mount recommended)
- MiGe 130ST(small and big
- Bodnar 53 series
- Simucube SC1 / SC2 Sport, Pro, Ultimate
- SIMAGIC ALPHA / ALPHA Mini / ULTIMATE
Also, Flight/Heavy Equipment
- Logitech Flight Yoke System (by clamp)
- Logitech Flight Switch/Multi/Instrument Panels
- Logitech Heavy Equipment
- Turtle Beach Velocity One Flight
- Honeycomb Aeronautical Alpha Flight Controls (by clamp)
Contact us if your product is not listed
