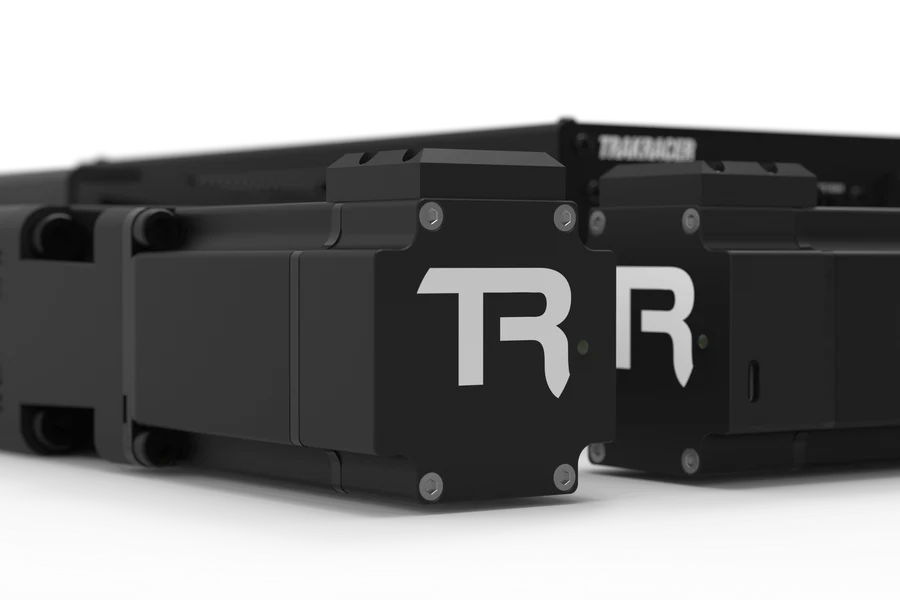

Product images are renders for illustrative purposes.

Trak Racer Motion & Haptic System

SKU: TRMOVE-3DOF-AU
Sale price $4,999.00
Maximum realism without the cost and complexity
  • Plug-and-play setup
  • True 3DOF motion (Heave, Roll, Pitch)
  • Integrated high-frequency haptic vibration
0000000000000582911 true
ready to ship
ships from victoria, australia
SHIPPING

In stock items are shipped within 2 business days!

Plug-and-Play Motion

TR-MOVE is designed to be plug-and-play.


There is no complex motion tuning, no custom wiring, and no third-party hardware required to get started.

  • Complete initial setup quickly
  • Calibrate motion and haptics
  • Start driving or flying without extensive configuration

Download TDM


TR-MOVE also supports SimHub for deeper telemetry tuning.

Three Degrees of Freedom

For sim racing, flight simulation & truck simulation, the most important motion cues are heave, roll & pitch. By focusing on these core axes, TR-MOVE delivers fast response and high fidelity.


These movements communicate:

  • Braking & acceleration forces
  • Weight transfer & suspension behaviour
  • Turbulence, surface detail & vertical load changes

Precision Vertical Movement

A full 100 mm of actuator stroke, providing meaningful vertical travel for heave, roll & pitch.


This movement range is carefully tuned to:

  • Reproduce braking dive and acceleration squat
  • Communicate suspension compression and elevation changes
  • Deliver convincing heave motion without overextension

High-Frequency Haptics

TR-MOVE features high-frequency vibration haptics, operating at up to 500 Hz.

Produces fine detail that motion alone cannot convey, including:
• Engine RPM and drivetrain vibration
• Kerbs, rumble strips, and road texture
• Turbulence, runway feedback, and surface detail

SPECIFICATIONS

  • Motion Type
  • 3DOF (Pitch, Roll, Heave)

  • Motor Power
  • 400W per actuator

  • Latency
  • ~5 ms

  • Operating Frequency
  • Up to 500 Hz

  • Load Capacity
  • Up to 240 kg

  • Stroke
  • 100 mm

  • Max Speed
  • 300 mm/s

  • Drive System
  • 1605 silent grinding ball screw

  • Screw Lead
  • 5 mm

  • Power System
  • DC 48V

  • Input Voltage
  • 110V / 220V (manual switch)

  • Software Support
  • Trak Racer Device Manager (TDM), SimHub compatible

  • Actuator Weight
  • 5 kg (each)

  • Total System Weight
  • 31 kg
What's Included

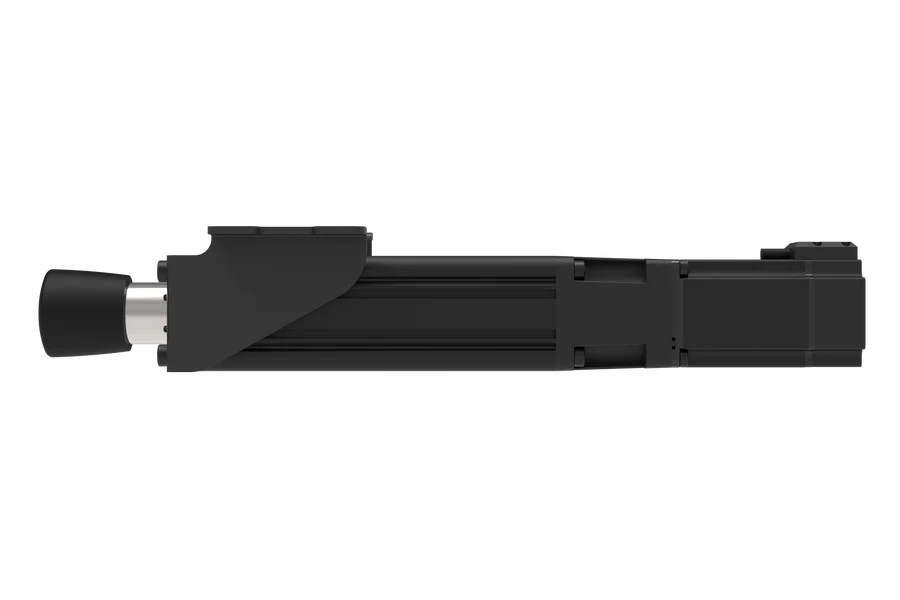

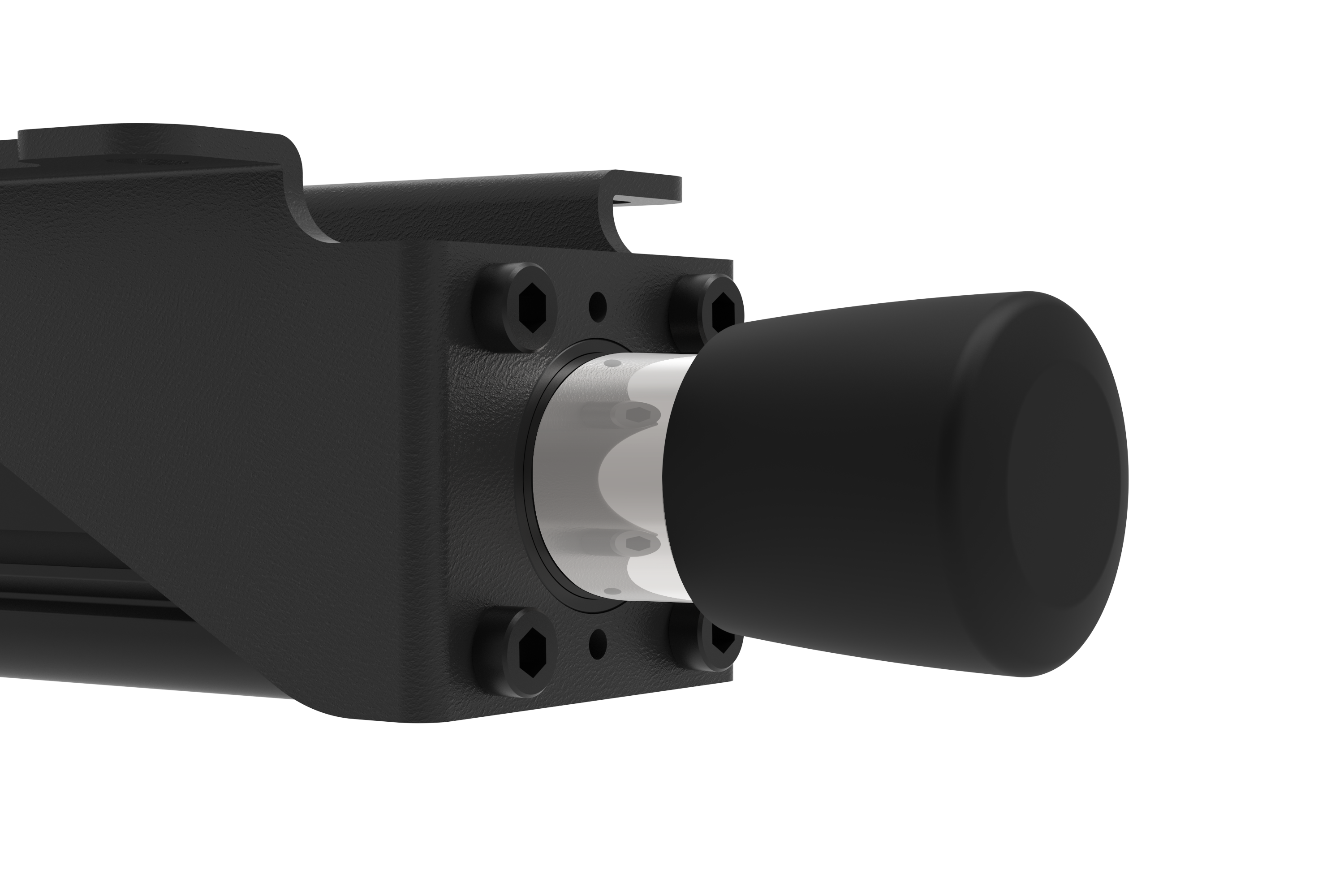

  • 4 × TR-MOVE motion actuators

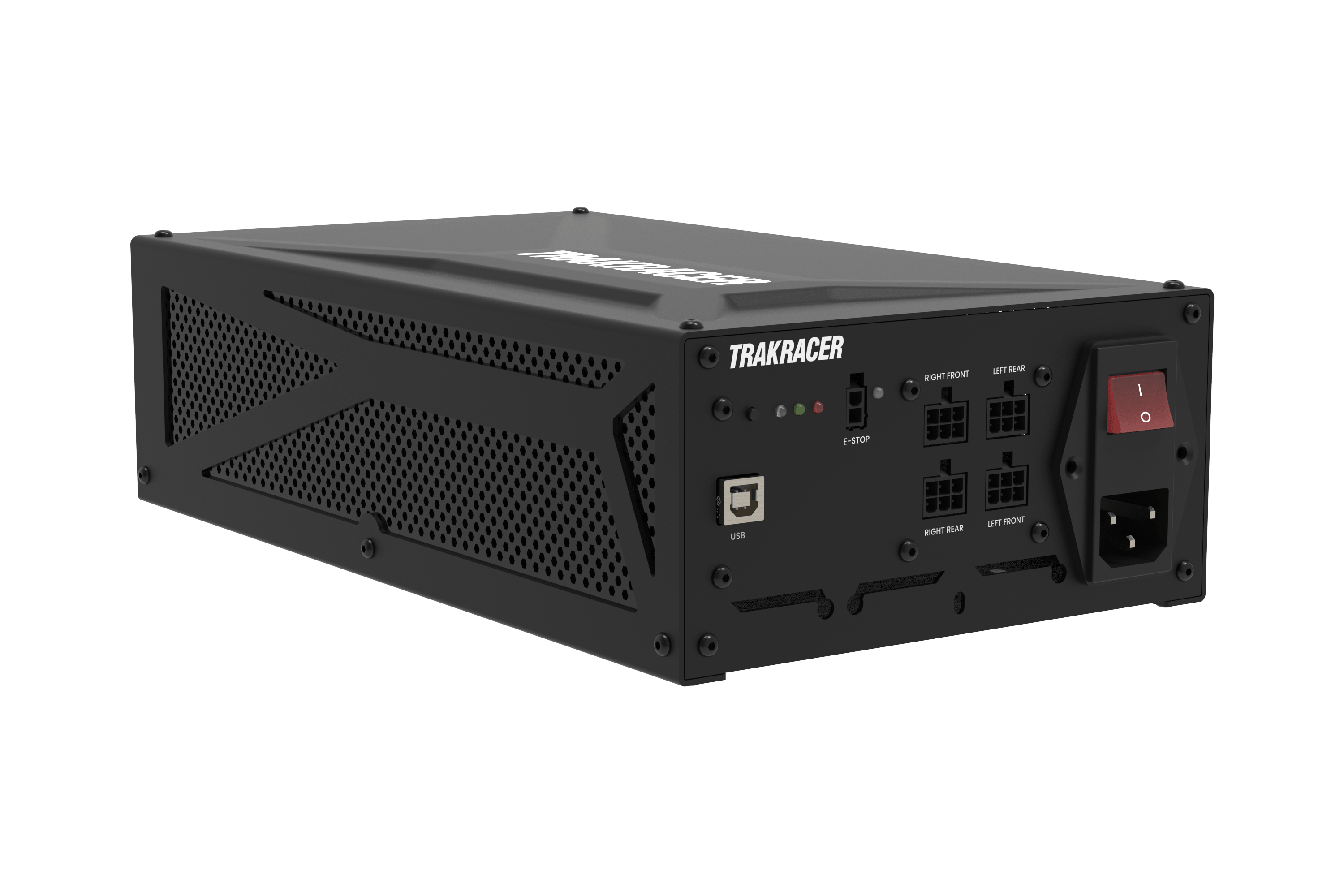

  • 1 × Motion control box
  • 1 × Emergency stop button

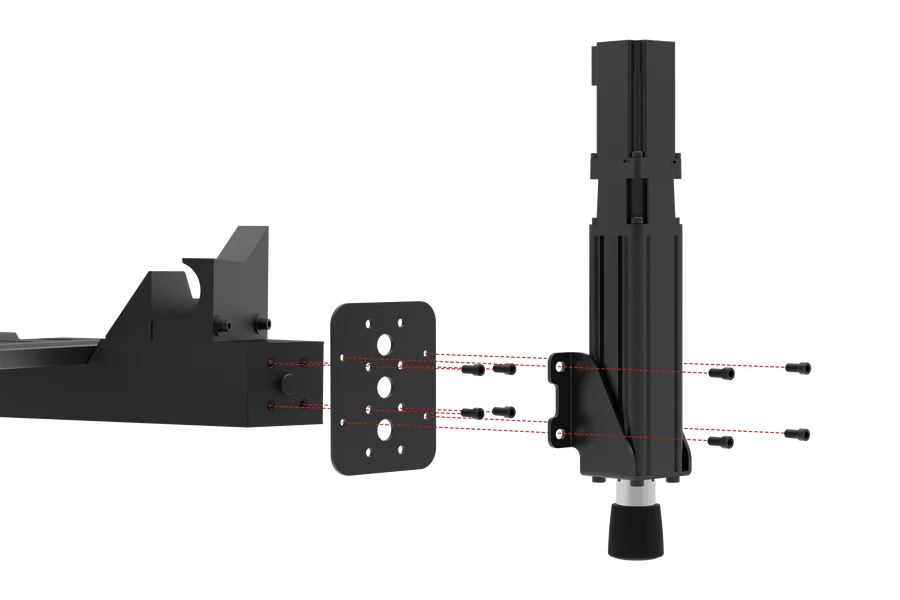

  • 4 × Mounting Plates
  • 4 × S profile Spacers

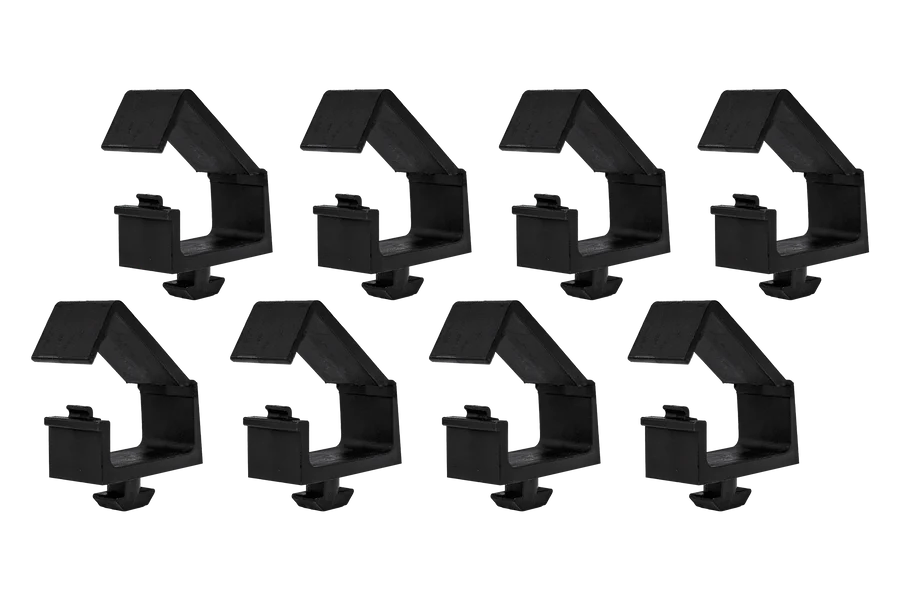

  • 8 × Cable Clips
  • All required mounting hardware
  • Power and connection cables
  • Trak Racer Device Manager (TDM) software

Warranty

Backed by a 2 Year Warranty covering materials and manufacturing under standard residential use.

Compatibility

Rigs

  • Out of the Box | TR80s, TR120s, TR160s, TRA
  • Out of the Box | Most extrusion rigs

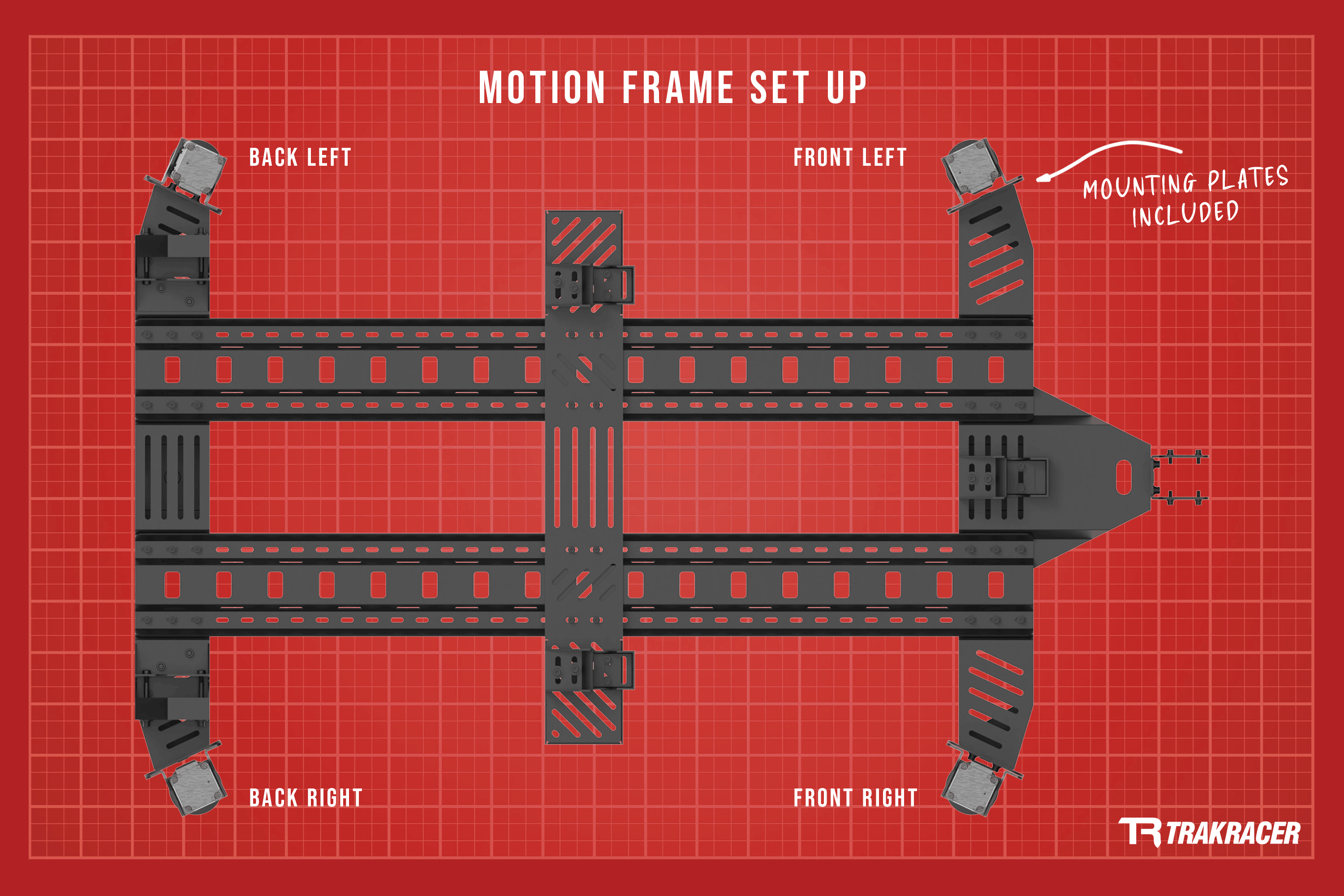

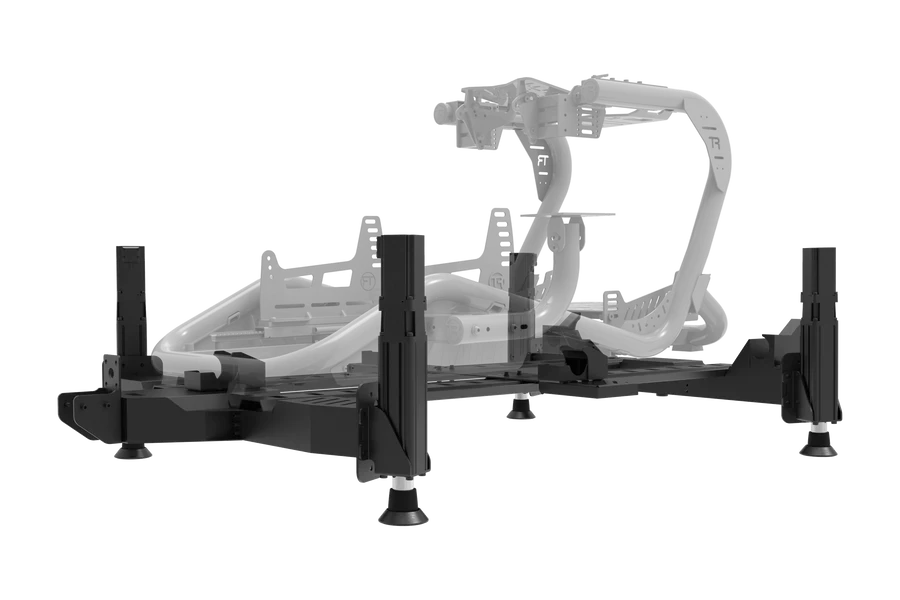

  • With Motion Frame | TRX, TR8 Pro, TR5, TRF, RS6 and other tube rigs

Software

  • Trak Racer Device Manager (TDM)
  • SimHub
